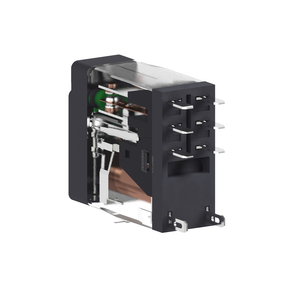

Schneider Electric RXG21B7 2Co 5A Relay +Ltb-Led 24Vac
Schneider Electric
$7.32
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
- Net Weight:
- 0.02 kg
- Minimum Switching Capacity:
- 50 mW at 10 mA, 5 V DC
- Load Current:
- 5 A 250 V AC
- Safety Reliability Data:
- B10d = 100000
- Contacts Type And Composition:
- 2 C/O
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- China Rohs Regulation:
- X
- Mounting Position:
- any position
- Device Presentation:
- complete product
- Drop-Out Voltage Threshold:
- >= 0.3 Uc AC
- Test Levels:
- level A group mounting
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Environmental Disclosure:
- ENVPEP1406006EN
- Utilisation Coefficient:
- 0.2
- Ambient Air Temperature For Storage:
- -40-85 °C
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Protection Category:
- RT I
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Mercury Free:
- Yes
- Product Certifications:
- CSA || UL || EAC || CE || DNV-GL
- Toxic Heavy Metal Free:
- Yes
- Contacts Material:
- silver alloy (AgSnO2In2O3)
- Local Signalling:
- flag
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Status Led:
- without
- Device Short Name:
- RXG
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -40-70 °C
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Range Of Product:
- Harmony Electromechanical Relays
- Rohs Exemption Information:
- Yes
- Resistance:
- 260 Ohm +/- 10 %
- Control Type:
- lockable test button
- Colour Of Cover:
- standard
- Average Consumption:
- 0.82 VA 60 Hz
- Control Circuit Voltage Limits:
- 0.8...1.1 Uc AC
- [Ie] Rated Operational Current:
- 5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
- Torque Value:
- 0.8 N.m
- Pollution Degree:
- 2
- Overvoltage Category:
- III
- Reach Free Of Svhc:
- Yes
- [Ithe] Conventional Enclosed Thermal Current:
- 5 A -40-55 °C
- Product Or Component Type:
- plug-in relay
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- Ip Degree Of Protection:
- IP40
- Standards:
- UL 508 || IEC 61810-1 || CSA C22.2 No 14
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation || 3000 V AC between poles with basic insulation
- Circularity Profile:
- N/A
- Mechanical Durability:
- 10000000 cycles
- Maximum Switching Capacity:
- 1250 VA
- Relative Humidity:
- 10-85 %
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Series Name:
- interface relay
