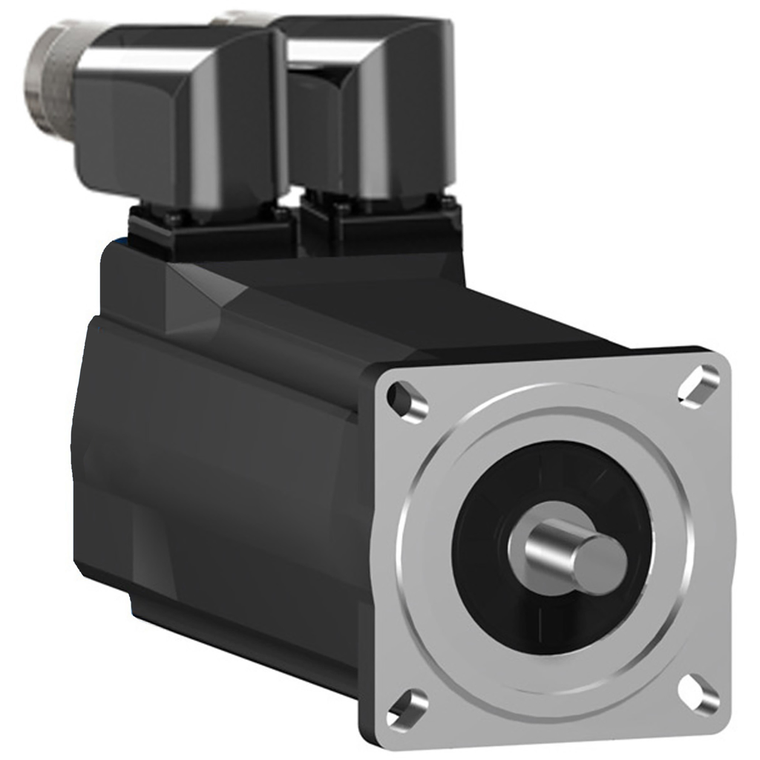

Schneider Electric SH30701P02A2200 Sh3 Motor 070.1 Mlt Ang Ip65

(No reviews yet) Write a Review

Write a Review

Schneider Electric SH30701P02A2200 Sh3 Motor 070.1 Mlt Ang Ip65

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

SH30701P02A2200

UPC:

3606481971487

MPN:

Condition:

New

Holding Brake:

without

Continuous Power:

690 W

[Us] Rated Supply Voltage:

115...480 V

Environmental Disclosure:

ENVPEP111049EN

Number Of Mounting Holes:

4

Mercury Free:

Yes

Range Compatibility:

PacDrive 3

Peak Stall Torque:

3.5 N.m 115...480 V three phase

China Rohs Regulation:

X

Continuous Stall Torque:

1.25 N.m 115...480 V three phase

Maximum Axial Force Fa:

80 N

Shaft Diameter:

11 mm

Mounting Support:

international standard flange

Phase:

three phase

Rotor Inertia:

0.25 kg.cm²

Maximum Radial Force Fr:

660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm || 380 N 5000 rpm || 360 N 6000 rpm

Maximum Mechanical Speed:

8000 rpm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Short Name:

SH3.....P

Warranty:

18 months

Centring Collar Depth:

2.5 mm

Ip Degree Of Protection:

motor IP65 EN/IEC 60034-5 || shaft bushing IP65 EN/IEC 60034-5 || housing IP67 EN/IEC 60034-5

Rohs Exemption Information:

Yes

Net Weight:

2.1 kg

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Stator Resistance:

10.4 Ohm

Circularity Profile:

N/A

Speed Feedback Resolution:

128 periods

Back Emf Constant:

46 V/krpm 20 °C

Motor Flange Size:

70 mm

Centring Collar Diameter:

60 mm

Product Or Component Type:

servo motor

Pvc Free:

Yes

Nominal Speed:

1500 rpm 115 V single phase || 3000 rpm 230 V single phase || 6000 rpm 400 V three phase || 7200 rpm 480 V three phase

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Continuous Stall Current:

1.8 A

Electrical Connection:

straight connector

Maximum Current Irms:

5.7 A

Number Of Motor Poles:

3

Mounting Holes Diameter:

5.5 mm

Nominal Output Power:

220 W 115 V single phase || 440 W 230 V single phase || 820 W 400 V three phase || 950 W 480 V three phase

Type Of Cooling:

natural convection

Encoder Type:

absolute multiturn SinCos Hiperface

Torque Constant:

0.69 N.m/A 120 °C

Stator Inductance:

60.25 mH

Circle Diameter Of The Mounting Holes:

82 mm

Shaft End:

smooth shaft

Nominal Torque:

1.4 N.m 115 V single phase || 1.4 N.m 230 V single phase || 1.1 N.m 400 V three phase || 1.1 N.m 480 V three phase

Shaft Length:

23 mm

Length:

154 mm
