Schneider Electric STBDDO3705 24Vdc Out 16Pt Source Basic 0.5A

Schneider Electric STBDDO3705 24Vdc Out 16Pt Source Basic 0.5A

Schneider Electric
SKU:
STBDDO3705
|
UPC:
3.59586E+12
$357.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

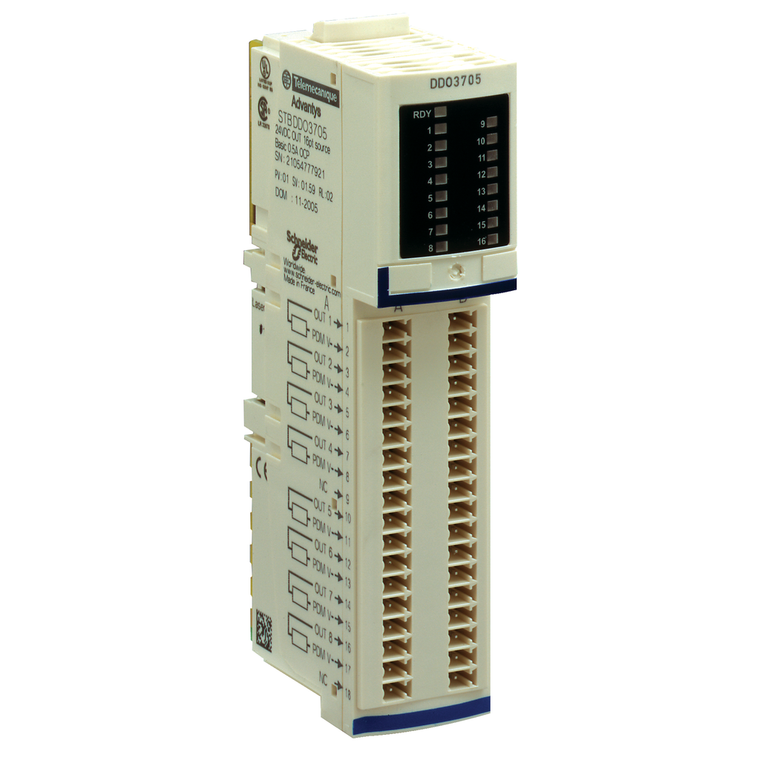

This output module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital output module offers 16 outputs with positive discrete output logic. It offers discrete output voltage of 24V DC with solid state discrete output. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
Additional Information
Discrete Output Type:
solid state
Ambient Air Temperature For Storage:
-40...185 °F without derating
Discrete Output Number:
16
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pollution Degree:
2 IEC 60664-1
Overvoltage Category:
II
Maximum Leakage Current:
0.4 mA at state 0 30 V
Ambient Air Temperature For Operation:
0-60 °C without derating)
Ip Degree Of Protection:
IP20 conforming to IEC 61131-2 class 1
Product Compatibility:
power distribution module STBPDT3100/3105 || I/O base STBXBA3000
Relative Humidity:
95-95 % 60-60 °C without condensation
Discrete Output Logic:
positive
Hot Swapping Fallback:
no for basic NIMs
Standards:
IEC 61131-2
[Us] Rated Supply Voltage:
24 V DC
Ambient Air Temperature For Storage:
-40-85 °C without derating
Product Certifications:
UL || CSA || FM Class 1 Division 2
Shock Resistance:
30 gn 11 ms IEC 88 reference 2-27
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Height:
13.9 mm
Maximum Load Capacitance:
10 µF
Net Weight:
0.086 kg
Warranty:
18 months
Output Voltage:
19.2...30 V DC
Insulation Between Channels And Logic Bus:
1500 V for 1 minute
Maximum Load Inductance:
1000 mH 4 Hz
Absolute Maximum Voltage:
35 V 1.3 ms
Width:
128.3 mm
Reset:
manual reset COM fault
Status Led:
1 LED (Green) module status (RDY) || 1 LED per channel (Green) channel status (OUT1 to OUT16)
Ambient Air Temperature For Operation:
32...140 °F without derating
Range Of Product:
Modicon STB distributed I/O solution
Mercury Free:
Yes
Operating Altitude:
<= 6561.68 ft (2000 m)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Cold Swapping:
yes
Depth:
70 mm
Rohs Exemption Information:
Yes
Discrete Output Current:
500 mA
Response Time:
2 ms off-to-on || 2 ms on-to-off
Discrete Output Voltage:
24 V
China Rohs Regulation:
X
Protection Type:
power protection integrated fuse on PDM time lag 5 A || reverse polarity protection || short-circuit protection || thermal overload protection
Current Consumption:
135 mA 5 V DC logic bus
Marking:
CE
Vibration Resistance:
3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Supply:
power distribution module
Discrete Output Voltage Type:
DC
Product Or Component Type:
basic digital output module
Catalog:
View
Datasheet:
View
