Schneider Electric VCCF4 Switch disconnector,TeSys Control,for ON/emergency stop,80A,4 screws fixing,for mounting at back of an enclosure

Schneider Electric VCCF4 Switch disconnector,TeSys Control,for ON/emergency stop,80A,4 screws fixing,for mounting at back of an enclosure

Schneider Electric
SKU:
VCCF4
$356.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

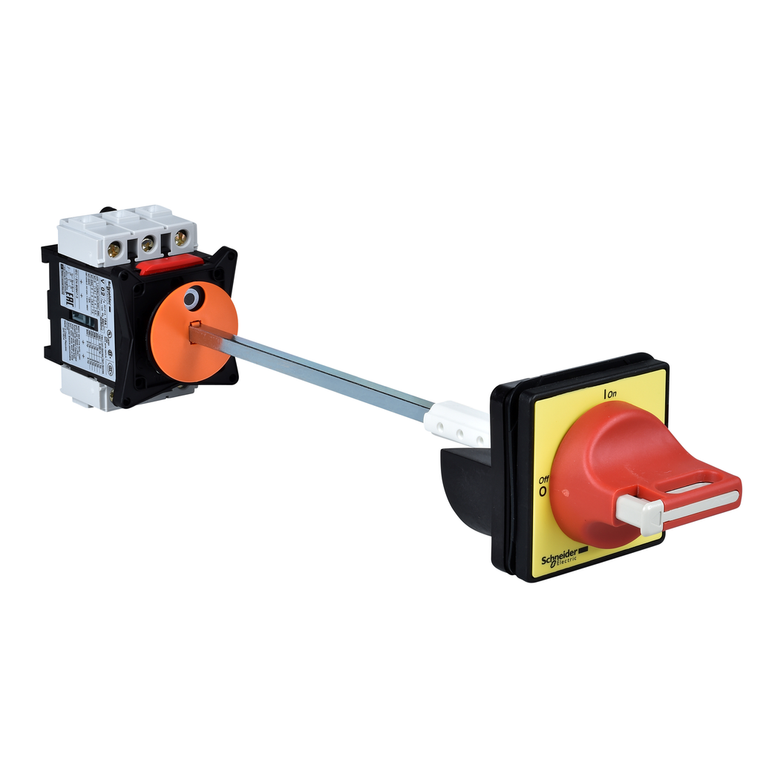

VCCF4 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 80A 690V, it is used for main and emergency stop switching in motor applications up to 30kW@400V AC-23. Composed of a V4 switch body, extension shaft, red padlockable handle, and a yellow 60x60mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Possible distance between back of enclosure and door 300-320mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Additional Information
Tightening Torque:
power circuit 4-4 N.m screw clamp terminals
Pvc Free:
Yes
Rotary Handle Mounting Style:
extended
Rated Conditional Short-Circuit Current:
10 kA 400 V 80 A aM || 10 kA 400 V 80 A gG
Rohs Exemption Information:
Yes
Mechanical Durability:
30000 cycles
Device Short Name:
VCCF
Toxic Heavy Metal Free:
Yes
Mercury Free:
Yes
Product Or Component Type:
emergency stop switch disconnector
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Operation:
-20-50°C
Control Type:
rotary handle
Protective Treatment:
TC
Fire Resistance:
960°C IEC 60695-2-1
[Ith] Conventional Free Air Thermal Current:
80 A
Poles Description:
3P
Compatibility Code:
main switch disconnector
[Uimp] Rated Impulse Withstand Voltage:
8 kV
Net Weight:
0.68 kg
Performance Level:
high performance
Contacts Type And Composition:
3 NO
Rated Operational Power In W:
18.5 kW 690 V AC-3) || 15 kW 230...240 V AC-3) || 22 kW 400...415 V AC-3) || 30 kW 500 V AC-3) || 30 kW 690 V AC-23A) || 37 kW 500 V AC-23A) || 18.5 kW 230...240 V AC-23A) || 30 kW 400...415 V AC-23A)
Handle Colour:
red
Base Dimension:
60 x 60 mm
Suitability For Isolation:
yes
Connections - Terminals:
power circuit screw clamp terminals 25-25 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - with cable end
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rotary Handle Padlocking:
1 to 3 padlocks 4-8 mm
Network Type:
DC || AC
Handle Front Plate Colour:
yellow
Standards:
IEC 60947-3
Product Certifications:
UL || GL || CSA || CCC || UKCA
Breaking Capacity:
640 A 400 V AC-21A) || 640 A 400 V AC-22A) || 640 A 400 V AC-23A)
[Icw] Rated Short-Time Withstand Current:
960 A 400 V 1 s
Fixing Mode:
by 4 screws handle || by clips switch || by screws switch
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Device Composition:
handle || switch || shaft extension
Mechanical Robustness:
vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Sustainable Offer Status:
Green Premium product
Intermittent Duty Class:
30
Width:
60 mm
Environmental Disclosure:
ENVPEP2211006
Range:
TeSys
[Ie] Rated Operational Current:
57 A AC-23 Ue: 400 V
Electrical Durability:
30000 cycles AC-21 || 30000 cycles DC-1...5
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP65
