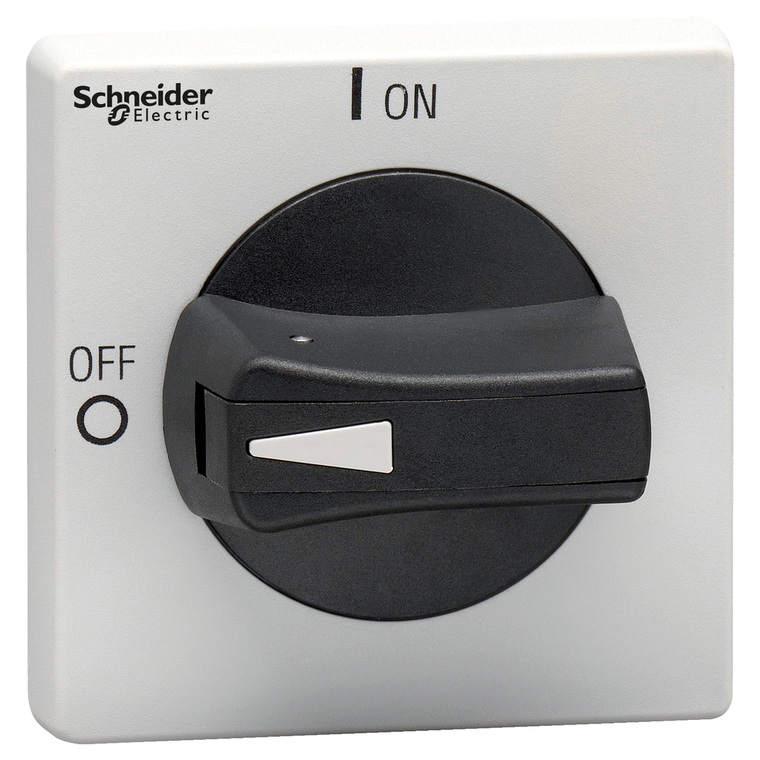

Schneider Electric VLSH2S5B Disconnect switch, TeSys VLS, protruding rotary handle, screw mounting, 65x65 mm, black handle, 5 mm shaft

(No reviews yet) Write a Review
SKU:
VLSH2S5B
MPN:
VLSH2S5B
Condition:
New
Device Short Name:
VLSH
Toxic Heavy Metal Free:
Yes
Rotary Handle Padlocking:
1 to 3 padlocks 4-8 mm
Product Or Component Type:
rotary handle
Mercury Free:
Yes
Ip Degree Of Protection:
IP65
Net Weight:
0.068 kg
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Country of Origin:
Italy
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Handle Colour:
black
Nema Degree Of Protection:
NEMA 1 || NEMA 2 UL 508 || NEMA 3R UL 508 || NEMA 4 UL 508 || NEMA 4X UL 508 || NEMA 12 UL 508 || NEMA 12K UL 508
Fixing Mode:
by 4 screws
Base Dimension:
65 x 65 mm
Range:
TeSys
Tightening Torque:
2.3 N.m
Marking:
0 - 1 || OFF-ON
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Range Compatibility:
TeSys TeSys VARIO LS VLS3P
Handle Front Plate Colour:
grey
Weight:
0.068 kg
Depth:
58 mm
$23.97

Description

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This black rotary handle will work with any VLS3P disconnect switch. This 2.56 inch by 2.56 inch handle is mounted using four screws. 5 mm shafts are used with this handle. The front plate is grey in color. The rotary handle will accept 1 to 3 padlocks that are 0.16 to 0.31 inch in diameter. Handle is marked 0 / OFF - 1 / ON. Handle is 2.56 inches tall, 2.56 inches wide and 2.28 inches deep. The handle weighs 0.15 lbs. This handle is NEMA 1, 3R, 12, 4 and 4X rated and IP65 rated. This handle is cULus Listed and meets IEC 60947-3 requirements.
