Schneider Electric

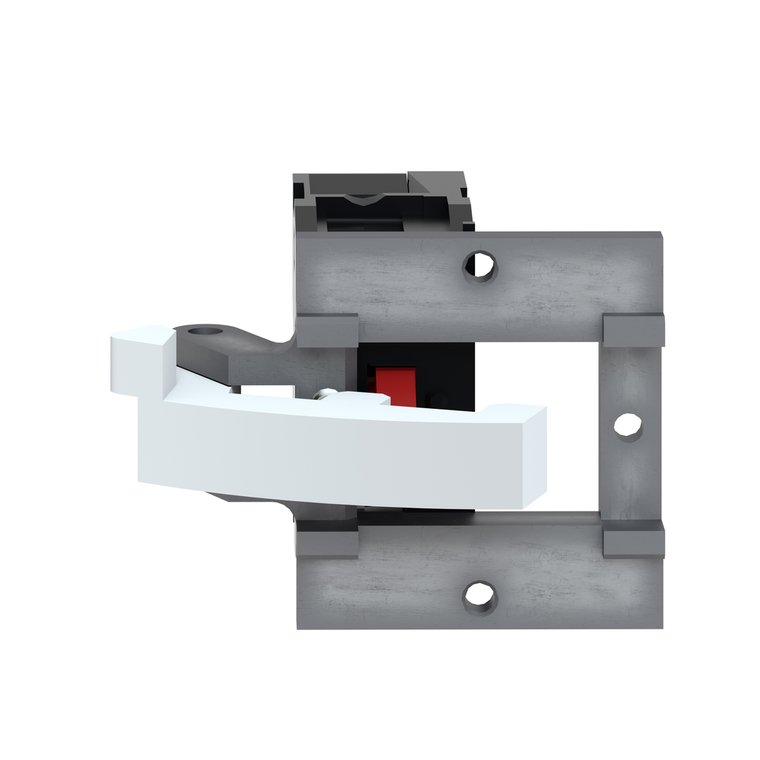

Schneider Electric XACS102 Spring Return Contact Block 1 Nc Base Mo

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XACS102 Spring Return Contact Block 1 Nc Base Mo

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XACS102

UPC:

3389110645255

MPN:

Condition:

New

Vibration Resistance:

15 gn 10-500 Hz)IEC 60068-2-6

Mechanical Durability:

1000000 cycles

Ambient Air Temperature For Operation:

-25-70 °C

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Connections - Terminals:

screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end

Contact Operation:

slow-break

Toxic Heavy Metal Free:

Yes

Type Of Operator:

spring return

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Ambient Air Temperature For Storage:

-40-70 °C

China Rohs Regulation:

X

Product Compatibility:

XACA

Component Name:

XACS

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Of Block:

base mounting

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Warranty:

18 months

Range Of Product:

Harmony XAC

Contacts Type And Composition:

1 NC

[Ithe] Conventional Enclosed Thermal Current:

0.416666666666667

Maximum Resistance Across Terminals:

25 MOhm

Rated Operational Power In W:

40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Overvoltage Category:

class II IEC 61140

Operating Force:

8 N

Contact Block Type:

single

Mercury Free:

Yes

Electrical Circuit Type:

control circuit

Terminals Description Iso N°1:

(11-12)NC

Reach Free Of Svhc:

Yes

Contact Code Designation:

A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

Standards:

CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508

Product Or Component Type:

contact block

Rohs Exemption Information:

Yes

Shock Resistance:

100 gn IEC 60068-2-27

Short-Circuit Protection:

10 A fuse protection cartridge gG

Reach Regulation:

Free of Substances of Very High Concern above the threshold
