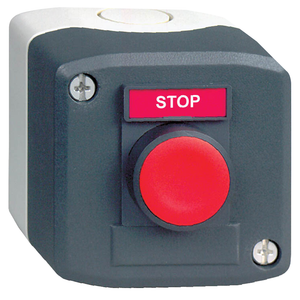

Schneider Electric XALD101H29H7 Control Station Xald Start Function 1 No

Schneider Electric XALD101H29H7 Control Station Xald Start Function 1 No

Schneider Electric
SKU:
XALD101H29H7
|
UPC:
3606480502682
Availability:
Contact us to confirm availability and lead times.
$73.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XALD, is a complete ready to use control station for start function. It has 1 flush push button, green with START marking on legend holder. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, IP67, IP69, IP69K, making it ideal for operation in harsh environments. This control station provides a good resistance to chemical agents, thanks to its electrical double insulation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides a polycarbonate double insulated enclosure with a light grey (RAL 7035) base of enclosure and a dark grey (RAL 7016) cover. This control station is ideally suited for industrial, buildings, and infrastructure applications. This control station complies with IEC, UL, CSA standards, as well as CE marking. It is also UL listed and CSA certified. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads
Additional Information
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4
Product Or Component Type:
complete control station
Cable Entry:
1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
[Ie] Rated Operational Current:
6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN
Net Weight:
0.157 kg
Operating Force:
3.8 N NO changing electrical state
Environmental Disclosure:
ENVPEP1806010EN
Tightening Torque:
0.8-1.2 N.m EN/IEC 60947-1
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Positive Opening:
without
Colour Of Base Of Enclosure:
light grey RAL 7035)
Contact Operation:
slow-break
Marking Location:
marking on legend holder
[Ui] Rated Insulation Voltage:
600 V 3)EN/IEC 60947-1
Product Destination:
for XB5 Ø 22 mm control and signalling units
Protective Treatment:
TH
Standards:
EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || JIS C8201-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Toxic Heavy Metal Free:
Yes
Control Station Composition:
1 flush push-button, green 1 NO START
Control Station Application:
start function
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Overvoltage Category:
class II IEC 60536
Product Certifications:
CSA || UL Listed
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN/IEC 60947-1
Sustainable Offer Status:
Green Premium product
Vibration Resistance:
5 gn 12-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Operation:
-40-70 °C
Operators Description:
green ''START'' 1 NO
Range Of Product:
Harmony XALD
Contacts Material:
silver alloy (Ag/Ni)
Mechanical Durability:
5000000 cycles
Operator Profile:
1 flush push-button
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ambient Air Temperature For Storage:
-40-70 °C
Rohs Exemption Information:
Yes
Device Short Name:
XALD
Operating Travel:
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Material:
polycarbonate
Circularity Profile:
ENVEOLI1806010EN
Reach Free Of Svhc:
Yes
Mercury Free:
Yes
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection:
IK03 EN 50102
Warranty:
18 months
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles
Colour Of Cover:
dark grey RAL 7016)
China Rohs Regulation:
X
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60947-5-1
[Ith] Conventional Free Air Thermal Current:
10 A EN/IEC 60947-5-1
