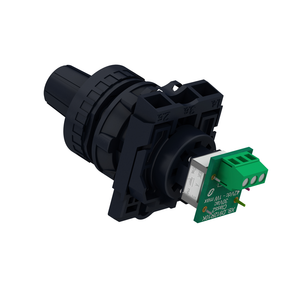

Schneider Electric XB4BD912R100K Head And Potentiometer R100K

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB4BD912R100K Head And Potentiometer R100K

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4BD912R100K

UPC:

3606480985034

MPN:

Condition:

New

Product Or Component Type:

potentiometer

Colour Of Marking:

white

Ohmic Value:

100000 Ohm

Sale Per Indivisible Quantity:

1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

[Us] Rated Supply Voltage:

<= 30 V AC || <= 42 V DC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Bezel Material:

chromium plated metal

Rohs Exemption Information:

Yes

Cad Overall Height:

47 mm

Device Presentation:

complete product

Electrical Shock Protection Class:

class II IEC 60536

Product Certifications:

UL Listed || CSA || BV

Mechanical Durability:

50000 cycles

Group Of Product:

potentiometer knurled knob

Ip Degree Of Protection:

IP66 IEC 60529 || IP69 IEC 60529 || IP69K IEC 60529

Standards:

UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1

Mounting Diameter:

22 mm

Circularity Profile:

ENVEOLI1808008EN

Product Compatibility:

Ø 6 mm shaft

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Head Type:

standard

Material:

cermet

Cad Overall Depth:

82 mm

Device Short Name:

XB4

Precision Of Internal Conversion Resistor:

-0.1

Potentiometer Characteristic:

linear

Cad Overall Width:

30 mm

Main Group:

potentiometer

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rated Power In W:

1 W 70 °C

Shape Of Signaling Unit Head:

round

Range Of Product:

Harmony XB4

Ambient Air Temperature For Storage:

-40-70 °C

China Rohs Regulation:

X

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Sustainable Offer Status:

Green Premium product

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environmental Disclosure:

ENVPEP1808008EN

Net Weight:

0.095 kg

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Mercury Free:

Yes

Ik Degree Of Protection:

IK06 IEC 50102

Operator Profile:

knurled knob, with white)

Ambient Air Temperature For Operation:

-40-70 °C

Protective Treatment:

TH
