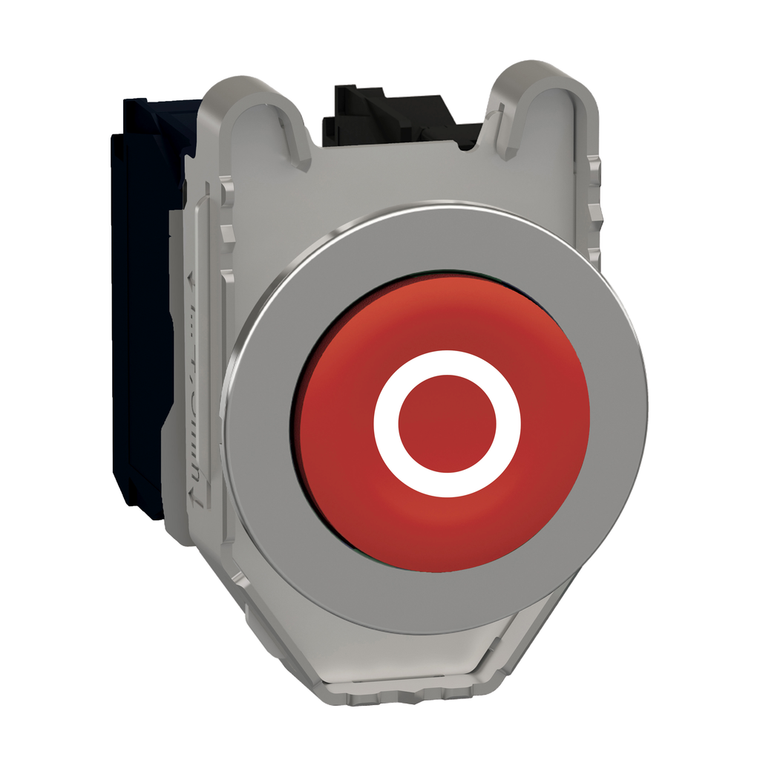

Schneider Electric XB4FL4325 Push button flush mounted, Harmony XB4, metal, projecting, red, 30mm, spring return, marked O, 1NO+1NC

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB4FL4325 Push button flush mounted, Harmony XB4, metal, projecting, red, 30mm, spring return, marked O, 1NO+1NC

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB4FL4325

UPC:

MPN:

XB4FL4325

Condition:

New

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Mechanical Durability:

10000000 cycles

Operating Force:

3.5 N NC changing electrical state || 3.8 N NO changing electrical state

Depth:

57 mm

Terminals Description Iso N°1:

(13-14)NO || (21-22)NC

Resistance To High Pressure Washer:

7000000 Pa 55°C 0.1 m

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Contacts Usage:

standard contacts

Ambient Air Temperature For Operation:

-40-70°C

Warranty:

18 months

Fixing Mode:

by screws

Mercury Free:

Yes

Device Mounting:

built-in

Range Of Product:

Harmony XB4

China Rohs Regulation:

X

Device Presentation:

complete product

Product Or Component Type:

push-button

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Ambient Air Temperature For Storage:

-40-70°C

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Reach Free Of Svhc:

Yes

Net Weight:

0.116 kg

Product Compatibility:

ZBYF... || ZBZF32 || ZBZF33

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Device Short Name:

XB4F

Sale Per Indivisible Quantity:

1

Mounting Diameter:

30.5 mm

Standards:

CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Head Type:

built-in-flush

Contacts Material:

silver alloy (Ag/Ni)

Fixing Collar Material:

zamak

Protective Treatment:

TH

Operator Profile:

red projecting, O white)

Overvoltage Category:

class I IEC 60536

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Type Of Operator:

spring return

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Shape Of Signaling Unit Head:

round

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Country of Origin:

France

Positive Opening:

without

Weight:

0.116 kg

Product Certifications:

UL Listed || CSA

Height:

47 mm

Ik Degree Of Protection:

IK06 conforming to IEC 50102
