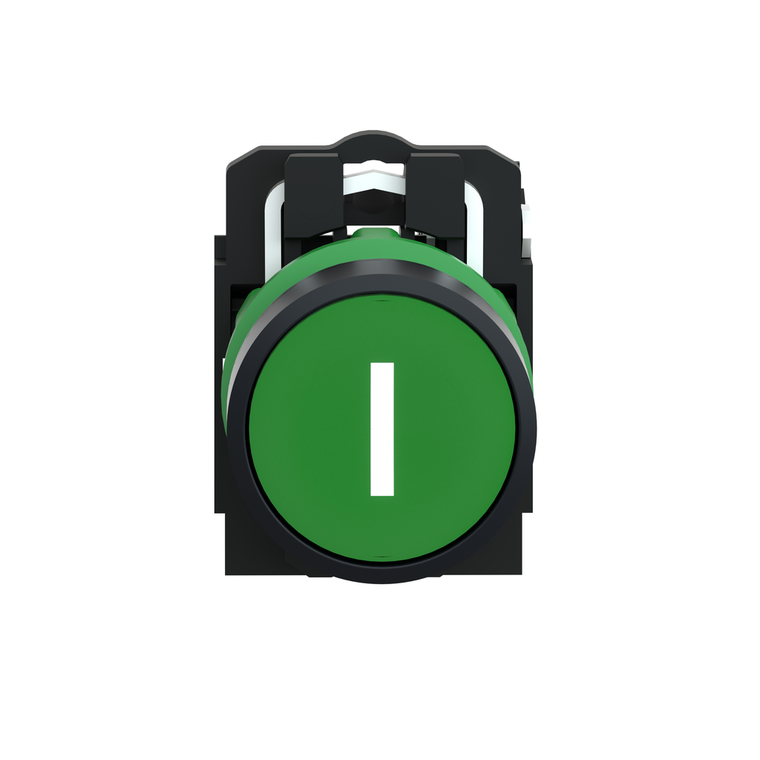

Schneider Electric XB5AA3311 Pushbutton
Schneider Electric
$44.70
This Harmony XB5, modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. It is marked with a "I" symbol. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Width:
- 30 mm
- Operating Force:
- 3.8 N NO changing electrical state
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Environmental Disclosure:
- ENVPEP1710010EN
- Type Of Operator:
- spring return
- Range Of Product:
- Harmony XB5
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Protective Treatment:
- TH
- Shape Of Signaling Unit Head:
- round
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Terminals Description Iso N°1:
- (13-14)NO
- Contacts Type And Composition:
- 1 NO
- Head Type:
- standard
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Toxic Heavy Metal Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Positive Opening:
- without
- Contacts Usage:
- standard contacts
- Ambient Air Temperature For Operation:
- -40-70 °C
- Customizable:
- no
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 22 mm
- Compatibility Code:
- XB5
- Circularity Profile:
- ENVEOLI1710010EN
- Mercury Free:
- Yes
- Product Certifications:
- LROS (Lloyds register of shipping) || UL Listed || DNV || CSA || BV || GL || RINA
- Reach Free Of Svhc:
- Yes
- Operating Travel:
- 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Fixing Collar Material:
- plastic
- Ambient Air Temperature For Storage:
- -40-70 °C
- Contact Operation:
- slow-break
- Overvoltage Category:
- class II IEC 60536
- Electrical Durability:
- 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
- Product Or Component Type:
- push-button
- Warranty:
- 18 months
- Operator Profile:
- green flush, I white)
- Net Weight:
- 0.037 kg
- Standards:
- IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1
- Depth:
- 52 mm
- Height:
- 42 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sale Per Indivisible Quantity:
- 1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Customizable:
- 0
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Contacts Material:
- silver alloy (Ag/Ni)
- Ik Degree Of Protection:
- IK03 IEC 50102
- Mechanical Durability:
- 10000000 cycles
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Device Presentation:
- complete product
- Device Short Name:
- XB5
- Bezel Material:
- plastic || dark grey plastic
- Catalog:
- View
