Schneider Electric

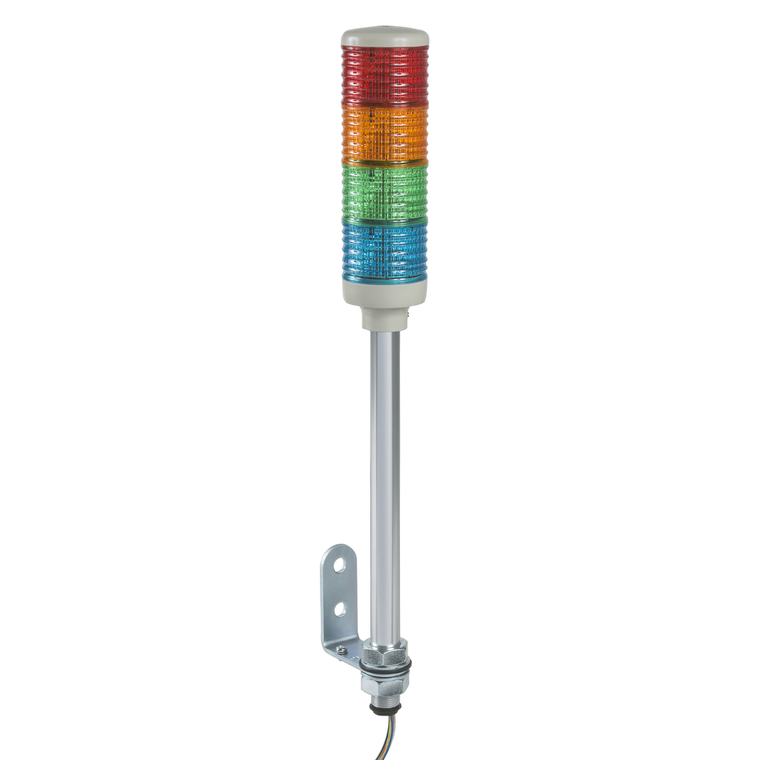

Schneider Electric XVC6B4 Indicating Banks 60Mm Led Pole Mount 24

SKU:

XVC6B4

UPC:

3606480032578

MPN:

Condition:

New

Mounting Diameter:

60 mm

Protective Treatment:

TC

Circularity Profile:

ENVEOLI1904008EN

Current Consumption:

100 mA

[Us] Rated Supply Voltage:

24 V

Rohs Exemption Information:

Yes

Range Of Product:

Harmony XVC6

Mercury Free:

Yes

Height:

548.3 mm

Awg Gauge:

AWG 22

Beacon Or Indicator Bank Unit Type:

4 illuminated units

Electrical Shock Protection Class:

class I IEC 61140

Warranty:

18 months

Cable Length:

600 mm

Ambient Air Temperature For Storage:

-35-70 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

X

Environmental Disclosure:

ENVPEP1904008EN

Material:

polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94HB): top cover || STK (chromium-plated): support tube

Product Or Component Type:

complete pre-wired monolithic tower light

[Uimp] Rated Impulse Withstand Voltage:

0.8 kV

Standards:

IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-6-2

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

UL

Supply Circuit Type:

AC/DC

Net Weight:

0.82 kg

Flashing Frequency:

1 Hz

Marking:

CE

Component Name:

XVC

Ambient Air Temperature For Operation:

-10-50 °C

Ip Degree Of Protection:

IP23 vertical surface installation IEC 60529

Cable Cross Section:

0.33-0.33 mm²

Light Source:

LED steady red || LED steady orange || LED steady green || LED steady blue

Product Mounting:

on support tube, 22 mm

Sound Signalling:

without

Brochure:

View

Catalog:

View

Datasheet:

View
