Schneider Electric XVLA325 Round Pilot Light And 12 Ip 40 Yellow Or
Schneider Electric
$52.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

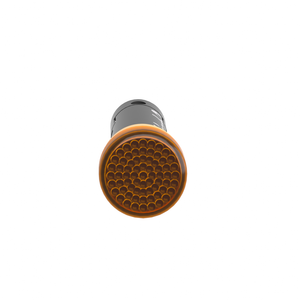

This Harmony XVLA325 is a yellow pilot light diameter 12mm. Its degree of protection is IP40/IP65 (with seal). It has covered LED included, 12V, lugs connection. It is part of the range Harmony XVL diameter 8-12 mm plastic pilot lights.
- Component Name:
- XVL
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Rohs Exemption Information:
- Yes
- Protective Treatment:
- TC
- Connections - Terminals:
- threaded connector 1 x 0.2...1 x 1.5 mm²
- Range Of Product:
- Harmony XVL
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- LED pilot light with integral lens cap
- Environmental Disclosure:
- ENVPEP111048EN
- Depth:
- 51 mm
- Width:
- 16 mm
- Circularity Profile:
- N/A
- Ambient Air Temperature For Operation:
- -25-70 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Protection Type:
- integral ballast resistor || built-in by diode
- Height:
- 16 mm
- Supply Circuit Type:
- DC
- Mounting Diameter:
- 12 mm
- Mercury Free:
- Yes
- Bulb Lifespan:
- 100000 h
- Overvoltage Category:
- class 3 IEC 60536 || class 3 NF C 20-030
- Light Block Colour:
- yellow
- Net Weight:
- 0.007 kg
- Ip Degree Of Protection:
- IP65 IEC 60529 with seal XVLZ912) || IP65 NF C 20-010 with seal XVLZ912) || IP40 IEC 60529 || IP40 NF C 20-010
- Current Consumption:
- 18 mA
- Light Source:
- covered LED
- Terminals Description Iso N°1:
- (X1-X2)PL
- Warranty:
- 18 months
- Product Certifications:
- CSA || UL
- China Rohs Regulation:
- X
- [Ui] Rated Insulation Voltage:
- 50 V IEC 60947-1
- [Us] Rated Supply Voltage:
- 12 V
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-70 °C
- Nominal Voltage Limit:
- 0.8...1.1 Un
- Datasheet:
- View
