Schneider Electric

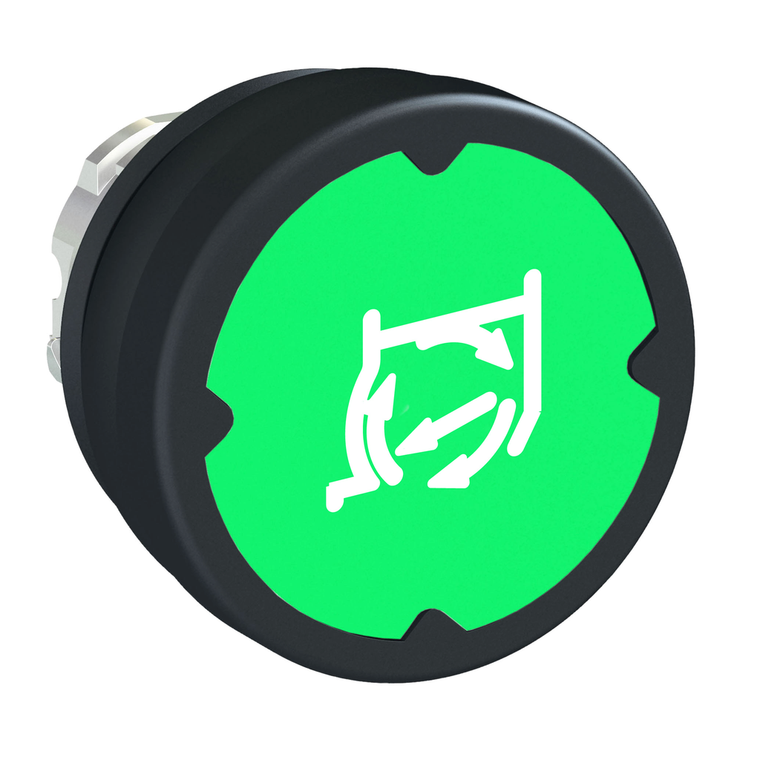

Schneider Electric ZB4BC38011RA Pushbutton For Harsh Enviroment, Green,

SKU:

ZB4BC38011RA

UPC:

3606480444388

MPN:

Condition:

New

Operator Profile:

green flush, type H011 white)

Type Of Operator:

spring return

Warranty:

18 months

Mercury Free:

Yes

Product Certifications:

CE || CSA || UL

Toxic Heavy Metal Free:

Yes

Circularity Profile:

ENVEOLI1808008EN

Sale Per Indivisible Quantity:

1

Ambient Air Temperature For Storage:

-40-85 °C

Cad Overall Depth:

37 mm

Range Of Product:

Harmony XB4

Electrical Shock Protection Class:

class I IEC 61140

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

Main Group:

harsh environment

Operator Additional Information:

horizontal mounting

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP66 IEC 60529 || IP69K || IP69

Product Or Component Type:

head for push-button

Device Short Name:

ZB4

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mounting Diameter:

22 mm

Colour Of Marking:

white

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Net Weight:

0.036 kg

China Rohs Regulation:

X

Mechanical Durability:

3000000 cycles

Bezel Material:

chromium plated metal

Sustainable Offer Status:

Green Premium product

Cad Overall Width:

37 mm

Group Of Product:

flush marked type H011

Cap/Operator Or Lens Colour:

green

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Ambient Air Temperature For Operation:

-40-70 °C

Environmental Disclosure:

ENVPEP1808008EN

Ik Degree Of Protection:

IK06 IEC 62262

Cad Overall Height:

18.5 mm

Shape Of Signaling Unit Head:

round

Resistance To High Pressure Washer:

90 Pa 82.5 °C

Standards:

CSA C22.2 || IEC 60947-1 || UL 508 || IEC 60947-5-1

Reach Free Of Svhc:

Yes

Marking:

type H011

Electrical Composition Code:

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting

Head Type:

standard

Nema Degree Of Protection:

NEMA 4 UL 508 || NEMA 13 || NEMA 12
