Schneider Electric ZB4BC38023RA Pushbutton For Harsh Enviroment, Green,
Schneider Electric
$54.90
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BC38023RA Pushbutton For Harsh Enviroment, Green,

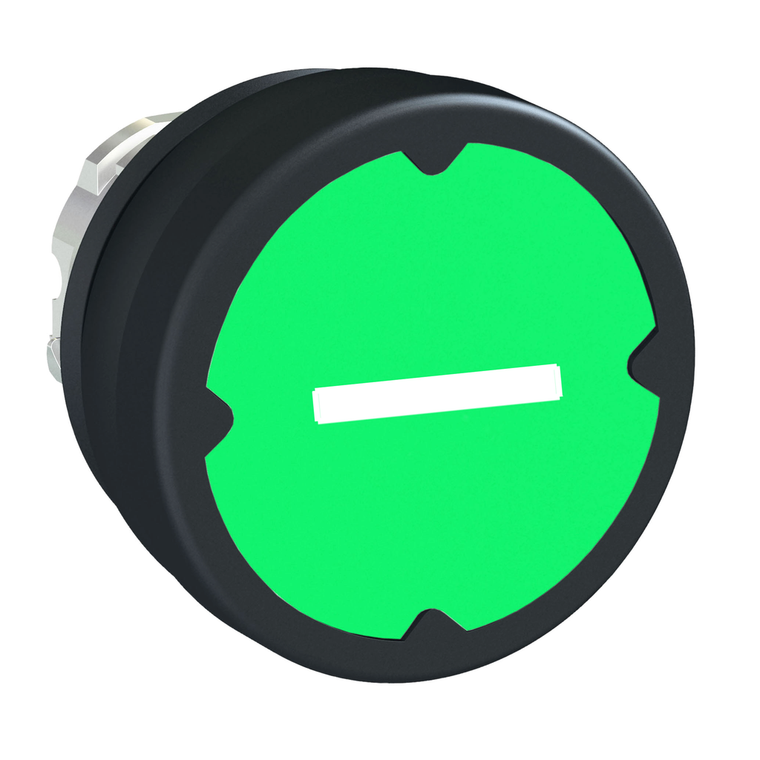

Head for push button, Harmony XB4, push button harsh environment, green, with marking legend, rotated 90degrees
- Net Weight:
- 0.036 kg
- Bezel Material:
- chromium plated metal
- Group Of Product:
- flush marked type H023
- Cap/Operator Or Lens Colour:
- green
- Marking:
- type H023
- Mounting Diameter:
- 22 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- ZB4
- Ik Degree Of Protection:
- IK06 IEC 62262
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Circularity Profile:
- ENVEOLI1808008EN
- Operator Profile:
- green flush, type H023 white)
- Mechanical Durability:
- 3000000 cycles
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP69K || IP69
- Ambient Air Temperature For Storage:
- -40-85 °C
- Nema Degree Of Protection:
- NEMA 4 UL 508 || NEMA 13 || NEMA 12
- Cad Overall Height:
- 18.5 mm
- Type Of Operator:
- spring return
- Resistance To High Pressure Washer:
- 90 Pa 82.5 °C
- Product Or Component Type:
- head for push-button
- Colour Of Marking:
- white
- Cad Overall Depth:
- 37 mm
- Environmental Disclosure:
- ENVPEP1808008EN
- Shape Of Signaling Unit Head:
- round
- Electrical Shock Protection Class:
- class I IEC 61140
- Toxic Heavy Metal Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Width:
- 37 mm
- Head Type:
- standard
- Sale Per Indivisible Quantity:
- 1
- Product Certifications:
- UL || CE || CSA
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Rohs Exemption Information:
- Yes
- Standards:
- CSA C22.2 || UL 508 || IEC 60947-5-1 || IEC 60947-1
- Mercury Free:
- Yes
- Main Group:
- harsh environment
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Range Of Product:
- Harmony XB4
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Operation:
- -40-70 °C
- Warranty:
- 18 months
- Operator Additional Information:
- horizontal mounting
- China Rohs Regulation:
- X
- Datasheet:
- View
