Schneider Electric

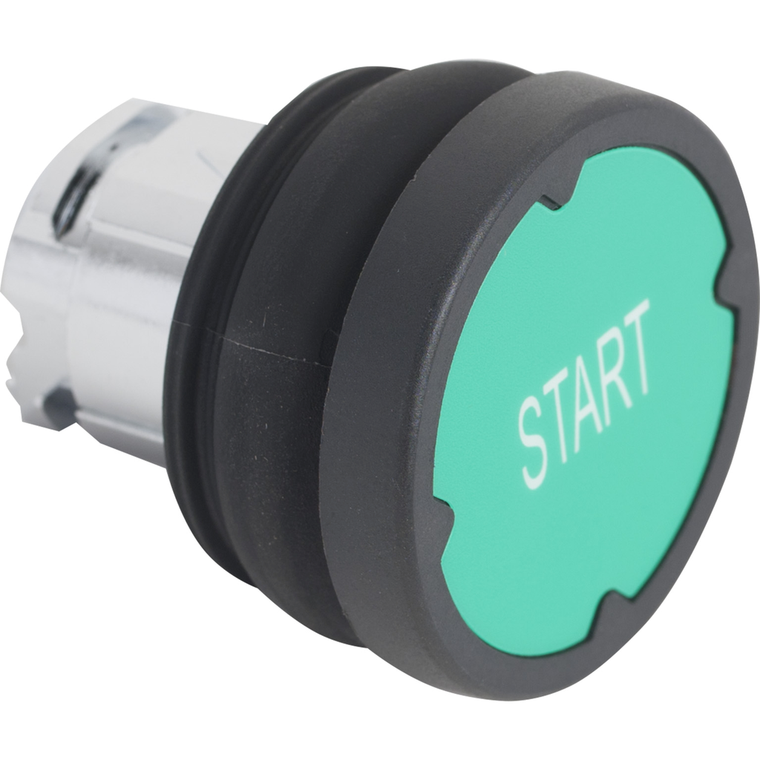

Schneider Electric ZB4BC38031 Pushbutton For Harsh Enviroment, Green,

SKU:

ZB4BC38031

UPC:

3.60648E+12

MPN:

Condition:

New

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Toxic Heavy Metal Free:

Yes

Cad Overall Height:

18.5 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Cap/Operator Or Lens Colour:

green

Cad Overall Depth:

37 mm

Marking:

type H031

Electrical Shock Protection Class:

class I IEC 61140

Ip Degree Of Protection:

IP66 IEC 60529 || IP69K || IP67 || IP69

Range Of Product:

Harmony XB4

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Electrical Composition Code:

C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting

Product Certifications:

CE || CSA || UL

Product Or Component Type:

head for push-button

Bezel Material:

chromium plated metal

Resistance To High Pressure Washer:

90 Pa 82.5 °C

Circularity Profile:

ENVEOLI1808008EN

Sale Per Indivisible Quantity:

1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27

Nema Degree Of Protection:

NEMA 4 UL 508 || NEMA 13 || NEMA 12

Shape Of Signaling Unit Head:

round

Mechanical Durability:

10000000 cycles

Main Group:

harsh environment

Group Of Product:

flush marked type H031

Net Weight:

0.036 kg

Operator Additional Information:

vertical mounting

Ik Degree Of Protection:

IK06 IEC 62262

Ambient Air Temperature For Operation:

-40-70 °C

Mounting Diameter:

22 mm

Ambient Air Temperature For Storage:

-40-85 °C

Cad Overall Width:

37 mm

Standards:

IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 || UL 508

Reach Free Of Svhc:

Yes

China Rohs Regulation:

X

Head Type:

standard

Device Short Name:

ZB4

Colour Of Marking:

white

Environmental Disclosure:

ENVPEP1808008EN

Warranty:

18 months

Operator Profile:

green flush, type H031 white)

Type Of Operator:

spring return

Sustainable Offer Status:

Green Premium product

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Datasheet:

View
