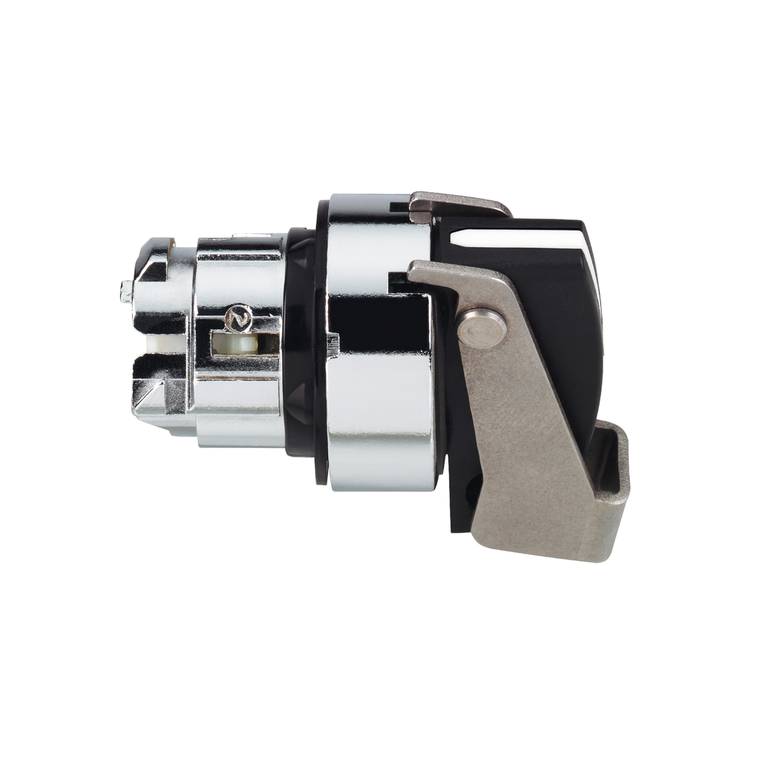

Schneider Electric ZB4BJ891 Padlockable Selector Head
This Harmony XB4, black selector switch head with padlockable long handle has 3 positions, operates with spring return from right to center mechanism with locking on left position. This switch head provides an ergonomic interface for controlling your machines. It is supplied with padlockable long handle to provide a secure manner for your authorized staff to make change in an operation. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Circularity Profile:
- ENVEOLI1808008EN
- Ambient Air Temperature For Operation:
- -40-70 °C
- Operator Profile:
- black long handle
- Net Weight:
- 0.048 kg
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Certifications:
- DNV || LROS (Lloyds register of shipping) || GL || CSA || UL Listed || BV
- Reach Free Of Svhc:
- Yes
- Shape Of Signaling Unit Head:
- round
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 || IP69K
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Protective Treatment:
- TH
- Bezel Material:
- chromium plated metal
- Type Of Operator:
- right to centre spring return
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ik Degree Of Protection:
- IK06 IEC 50102
- Cad Overall Height:
- 38 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mechanical Durability:
- 1000000 cycles
- Sale Per Indivisible Quantity:
- 1
- Operator Additional Information:
- padlockable
- Rohs Exemption Information:
- Yes
- Cad Overall Width:
- 29 mm
- Operator Position Information:
- 3 positions +/- 45°
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-70 °C
- Device Short Name:
- ZB4
- Environmental Disclosure:
- ENVPEP1808008EN
- Mounting Diameter:
- 22 mm
- China Rohs Regulation:
- X
- Device Presentation:
- basic element
- Head Type:
- standard
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
- Warranty:
- 18 months
- Product Or Component Type:
- head for selector switch
- Cad Overall Depth:
- 50 mm
- Overvoltage Category:
- class I IEC 60536
- Locking Position:
- on the left
- Range Of Product:
- Harmony XB4
- Standards:
- IEC 60947-5-1 || IEC 60947-1 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || JIS C8201-1
- Toxic Heavy Metal Free:
- Yes
