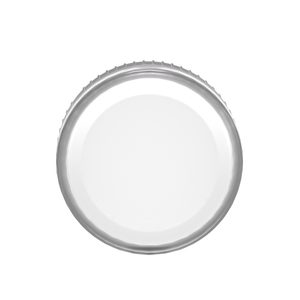

Schneider Electric ZB4BV01S Neon Pilot Light Head
Schneider Electric
$11.40
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4BV01S Neon Pilot Light Head
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, grooved lens white head for pilot light is supplied with BA9s base. This head with BA9s base pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- chromium plated metal
- Standards:
- IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-5 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1
- Mounting Diameter:
- 22 mm
- Protective Treatment:
- TH
- Overvoltage Category:
- class I IEC 60536
- Environmental Characteristic:
- high ambient lighting environment
- Head Type:
- standard
- Device Short Name:
- ZB4
- Rohs Exemption Information:
- Yes
- Device Presentation:
- basic element
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Shape Of Signaling Unit Head:
- round
- Reach Free Of Svhc:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Compatibility:
- BA 9s
- Sale Per Indivisible Quantity:
- 1
- China Rohs Regulation:
- X
- Cad Overall Height:
- 29 mm
- Ik Degree Of Protection:
- IK06 IEC 50102
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mercury Free:
- Yes
- Product Or Component Type:
- head for pilot light
- Range Of Product:
- Harmony XB4
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Environmental Disclosure:
- ENVPEP2308026EN
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cad Overall Depth:
- 31 mm
- Cad Overall Width:
- 29 mm
- Ambient Air Temperature For Operation:
- -40-55 °C
- Electrical Composition Code:
- P3 front mounting BA 9s || P4 front mounting BA 9s and transformer
- Warranty:
- 18 months
- Net Weight:
- 0.027 kg
- Sustainable Offer Status:
- Green Premium product
- Toxic Heavy Metal Free:
- Yes
- Cap/Operator Or Lens Colour:
- white
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Circularity Profile:
- ENVEOLI2308026EN
- Operator Additional Information:
- with grooved lens
