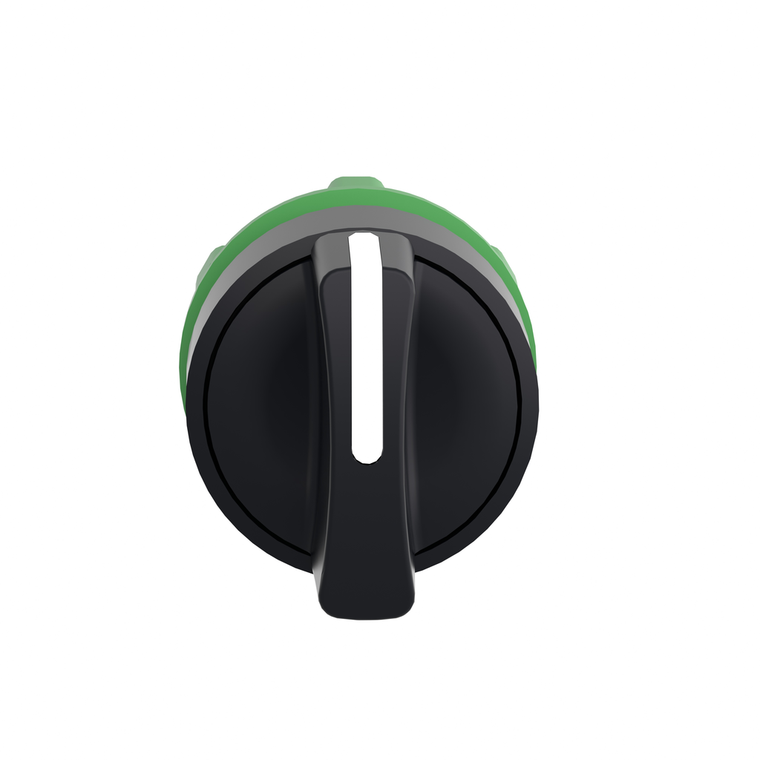

Schneider Electric ZB5AD5 Selector Operating Head
Schneider Electric
$29.40
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB5, black selector switch head with standard handle has 3 positions, operates with spring return to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Sustainable Offer Status:
- Green Premium product
- Mercury Free:
- Yes
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Operator Position Information:
- 3 positions +/- 45°
- Type Of Operator:
- to centre spring return
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Reach Free Of Svhc:
- Yes
- Mounting Diameter:
- 22 mm
- Net Weight:
- 0.017 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Head Type:
- standard
- Environmental Disclosure:
- ENVPEP1710010EN
- Overvoltage Category:
- class II IEC 60536
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Ambient Air Temperature For Storage:
- -40-70 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Or Component Type:
- head for selector switch
- Operator Profile:
- black standard handle
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Warranty:
- 18 months
- Toxic Heavy Metal Free:
- Yes
- Shape Of Signaling Unit Head:
- round
- Ik Degree Of Protection:
- IK06 IEC 50102
- Bezel Material:
- dark grey plastic
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Device Presentation:
- basic element
- Protective Treatment:
- TH
- Rohs Exemption Information:
- Yes
- Mechanical Durability:
- 1000000 cycles
- Sale Per Indivisible Quantity:
- 1
- Product Certifications:
- UL Listed || GL || LROS (Lloyds register of shipping) || DNV || BV || CSA
- Range Of Product:
- Harmony XALF || Harmony XB5
- Device Short Name:
- ZB5
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Width:
- 29 mm
- Cad Overall Height:
- 29 mm
- Cad Overall Depth:
- 46 mm
- China Rohs Regulation:
- X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Standards:
- UL 508 || IEC 60947-5-1 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
