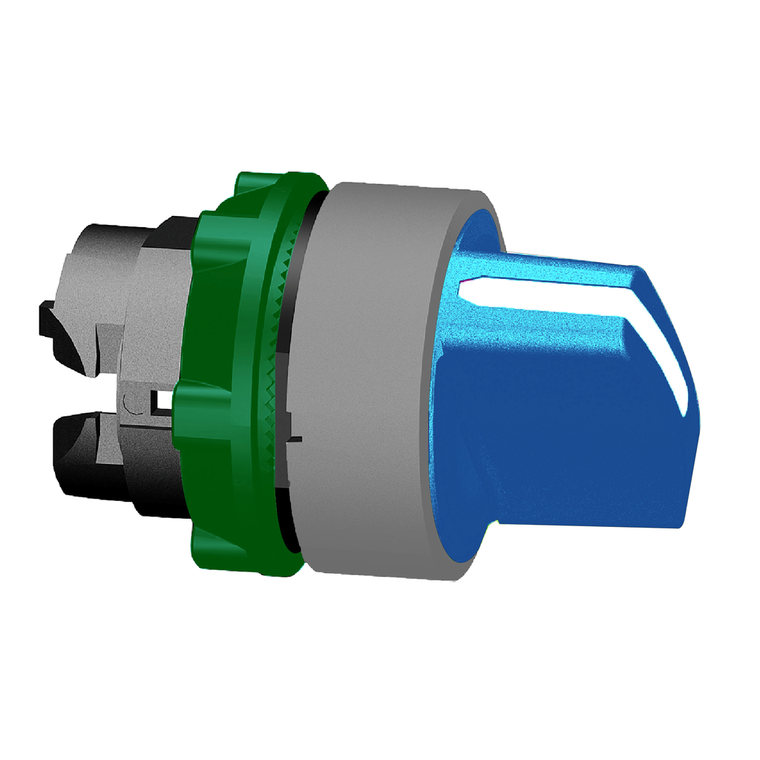

Schneider Electric ZB5AD806C0 Blue Selector Head
Schneider Electric
$26.98
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
- Bezel Material:
- plastic colour plated grey
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mercury Free:
- Yes
- Type Of Operator:
- right to centre spring return
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shape Of Signaling Unit Head:
- round
- Operator Profile:
- blue standard handle
- Range Of Product:
- Harmony XB5
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ip Degree Of Protection:
- IP67 IEC 60529
- Cad Overall Width:
- 29 mm
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- head for selector switch
- Mechanical Durability:
- 1000000 cycles
- Device Presentation:
- basic element
- Overvoltage Category:
- class II IEC 60536
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mounting Diameter:
- 22 mm
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Rohs Exemption Information:
- Yes
- Sale Per Indivisible Quantity:
- 1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Device Short Name:
- ZB5
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || GL || UL Listed || CSA || BV
- Cad Overall Height:
- 29 mm
- China Rohs Regulation:
- X
- Head Type:
- standard
- Net Weight:
- 0.017 kg
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Ambient Air Temperature For Operation:
- -40-70 °C
- Protective Treatment:
- TH
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Cad Overall Depth:
- 46 mm
- Operator Position Information:
- 3 positions +/- 45°
- Ik Degree Of Protection:
- IK06 IEC 50102
- Datasheet:
- View
