Schneider Electric ZB5AJ3 Pushbutton Turn
Schneider Electric
$24.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

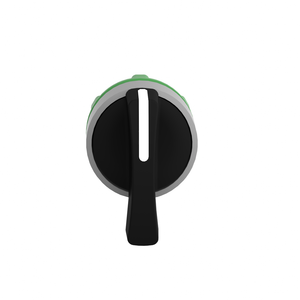

This Harmony XB5, black head with long handle for selector switch has 3 positions, operates with stay-put mechanism. This switch head with long handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Mounting Diameter:
- 22 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Circularity Profile:
- ENVEOLI1710010EN
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity:
- 1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 1000000 cycles
- Reach Free Of Svhc:
- Yes
- Standards:
- UL 508 || IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1
- Net Weight:
- 0.017 kg
- Ip Degree Of Protection:
- IP67 IEC 60529 || IP69 IEC 60529 || IP69K
- Product Certifications:
- GL || LROS (Lloyds register of shipping) || UL Listed || DNV || BV || CSA
- Cad Overall Width:
- 29 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Device Short Name:
- ZB5
- Bezel Material:
- dark grey plastic
- Head Type:
- standard
- Operator Additional Information:
- non padlockable
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- X
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- head for selector switch
- Ambient Air Temperature For Storage:
- -40-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Type Of Operator:
- stay put
- Overvoltage Category:
- class II IEC 60536
- Shape Of Signaling Unit Head:
- round
- Cad Overall Depth:
- 46 mm
- Ik Degree Of Protection:
- IK06 IEC 50102
- Operator Profile:
- black long handle
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Operator Position Information:
- 3 positions +/- 45°
- Device Presentation:
- basic element
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Toxic Heavy Metal Free:
- Yes
- Range Of Product:
- Harmony XB5
- Cad Overall Height:
- 38 mm
- Protective Treatment:
- TH
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Datasheet:
- View
