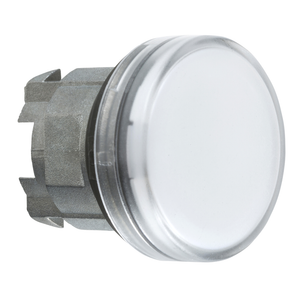

Schneider Electric ZB5AV03S Neon Pilot Light Head

Schneider Electric ZB5AV03S Neon Pilot Light Head

Schneider Electric
SKU:
ZB5AV03S
|
UPC:
3389110072174
Availability:
Contact us to confirm availability and lead times.
$11.40
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB5 grooved lens green head for pilot light is supplied with BA9s base. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of lens. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Additional Information
Bezel Material:
dark grey plastic
China Rohs Regulation:
X
Mercury Free:
Yes
Protective Treatment:
TH
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Product Compatibility:
BA 9s
Environmental Characteristic:
high ambient lighting environment
Net Weight:
0.017 kg
Device Short Name:
ZB5
Ambient Air Temperature For Storage:
-40-70 °C
Cad Overall Depth:
31 mm
Warranty:
18 months
Toxic Heavy Metal Free:
Yes
Ambient Air Temperature For Operation:
-40-70 °C
Reach Free Of Svhc:
Yes
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Station Name:
XALD 1...5 cut-outs || XALK 2...5 cut-outs
Operator Additional Information:
with grooved lens
Cad Overall Width:
29 mm
Overvoltage Category:
class II IEC 60536
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
Ik Degree Of Protection:
IK05 IEC 50102
Cad Overall Height:
29 mm
Cap/Operator Or Lens Colour:
green
Product Or Component Type:
head for pilot light
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP1710010EN
Sustainable Offer Status:
Green Premium product
Range Of Product:
Harmony XB5
Standards:
UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
Device Presentation:
basic element
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Diameter:
22 mm
Shape Of Signaling Unit Head:
round
Electrical Composition Code:
P3 front mounting BA 9s || P4 front mounting BA 9s and transformer || PF2 front mounting BA 9s
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Head Type:
standard
Circularity Profile:
ENVEOLI1710010EN
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Sale Per Indivisible Quantity:
1
