Schneider Electric ZB5AW065 Direct Supply Ill. P.B. B
Schneider Electric
$71.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5AW065 Direct Supply Ill. P.B. B

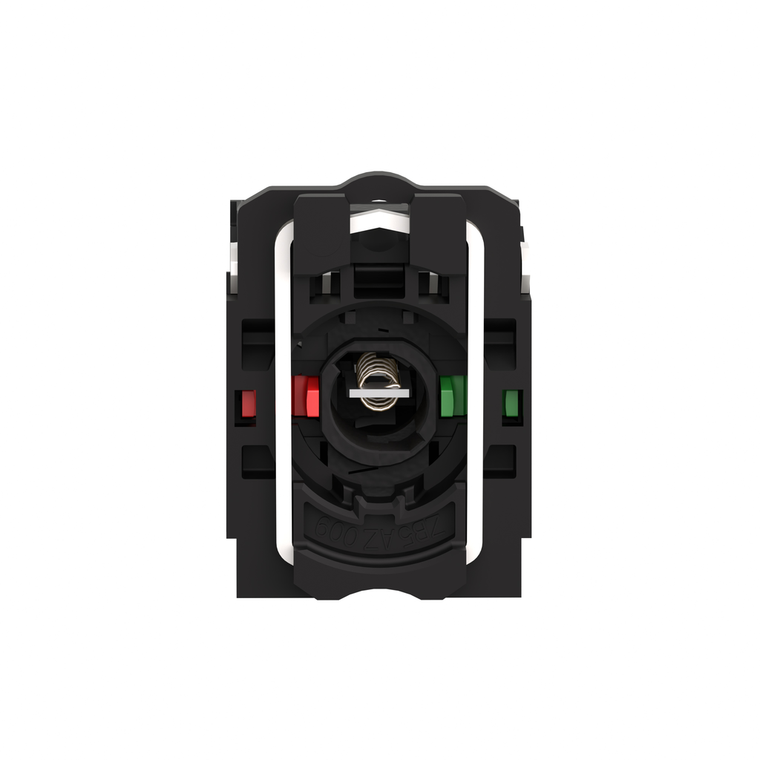

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
- Cad Overall Depth:
- 32 mm
- Contact Operation:
- slow-break
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Operating Torque:
- 0.05 N.m NO changing electrical state
- Ambient Air Temperature For Operation:
- -40-70 °C
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Terminals Description Iso N°1:
- (13-14)NO || (11-12)NC
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Fixing Collar Material:
- plastic
- Bulb Base:
- BA 9s
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Contacts Type And Composition:
- 1 NO + 1 NC
- Ambient Air Temperature For Storage:
- -40-70 °C
- Protective Treatment:
- TH
- Product Certifications:
- LROS (Lloyds register of shipping) || DNV || GL || CSA || UL Listed || BV
- Contacts Usage:
- standard
- Device Short Name:
- ZB5
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sale Per Indivisible Quantity:
- 1
- Positive Opening:
- with IEC 60947-5-1 appendix K
- [Us] Rated Supply Voltage:
- <= 250 V
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- Cad Overall Height:
- 42 mm
- Mechanical Durability:
- 5000000 cycles
- Circularity Profile:
- ENVEOLI1710010EN
- Electrical Shock Protection Class:
- class II IEC 60536
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Range Of Product:
- Harmony XB5
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Mercury Free:
- Yes
- Net Weight:
- 0.041 kg
- Head Type:
- standard
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Signalling Type:
- steady
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Width:
- 30 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Operating Force:
- 2 N NC changing electrical state || 2.3 N NO changing electrical state
- Electrical Reliability:
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Warranty:
- 18 months
- Device Presentation:
- basic sub-assemblies
- Light Source:
- bulb not included
- Contacts Material:
- silver alloy (Ag/Ni)
- Product Or Component Type:
- complete body/contact assembly and light block
- Environmental Disclosure:
- ENVPEP1710010EN
- Light Block Supply:
- direct <2.4 W
- China Rohs Regulation:
- X
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Standards:
- UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-1
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
