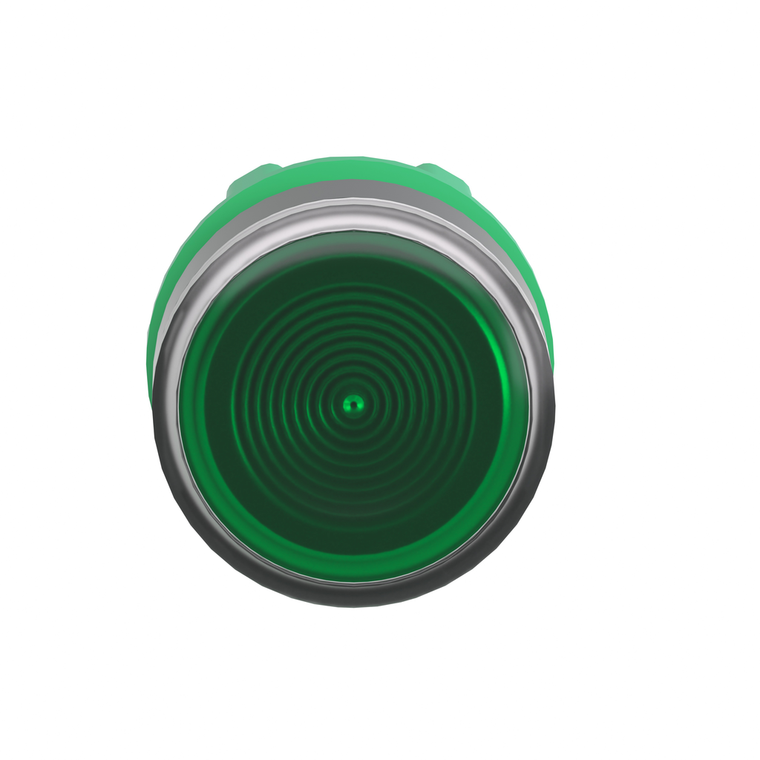

Schneider Electric ZB5AW333S Striated Lens Ill. P.B He
This green flush illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Standards:
- UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || GB 14048.5 || CSA C22.2 No 14 || JIS C8201-1
- Mercury Free:
- Yes
- Overvoltage Category:
- class II IEC 60536
- Shape Of Signaling Unit Head:
- round
- Type Of Operator:
- spring return
- Device Presentation:
- basic sub-assemblies
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Marking:
- unmarked
- Circularity Profile:
- ENVEOLI1710010EN
- Mechanical Durability:
- 10000000 cycles
- Product Certifications:
- LROS (Lloyds register of shipping) || CSA || DNV || BV || GL || UL Listed
- Cad Overall Depth:
- 30 mm
- Sale Per Indivisible Quantity:
- 1
- Product Or Component Type:
- head for illuminated push-button
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Warranty:
- 18 months
- Range Of Product:
- Harmony XB5
- Ambient Air Temperature For Operation:
- -40-70 °C
- Net Weight:
- 0.017 kg
- Cad Overall Width:
- 29 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Head Type:
- standard
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Protective Treatment:
- TC
- Bezel Material:
- dark grey plastic
- Mounting Diameter:
- 22 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Rohs Exemption Information:
- Yes
- Group Of Product:
- flush push integral LED
- Environmental Disclosure:
- ENVPEP1710010EN
- Cad Overall Height:
- 29 mm
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2
- Ik Degree Of Protection:
- IK05 EN 50102
- Cap/Operator Or Lens Colour:
- green
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Environmental Characteristic:
- high ambient lighting environment
- Main Group:
- illum push-button
- Operator Profile:
- green flush, unmarked
- Product Compatibility:
- universal LED
- Sustainable Offer Status:
- Green Premium product
- Device Short Name:
- ZB5
- Operator Additional Information:
- with grooved lens
- China Rohs Regulation:
- X
