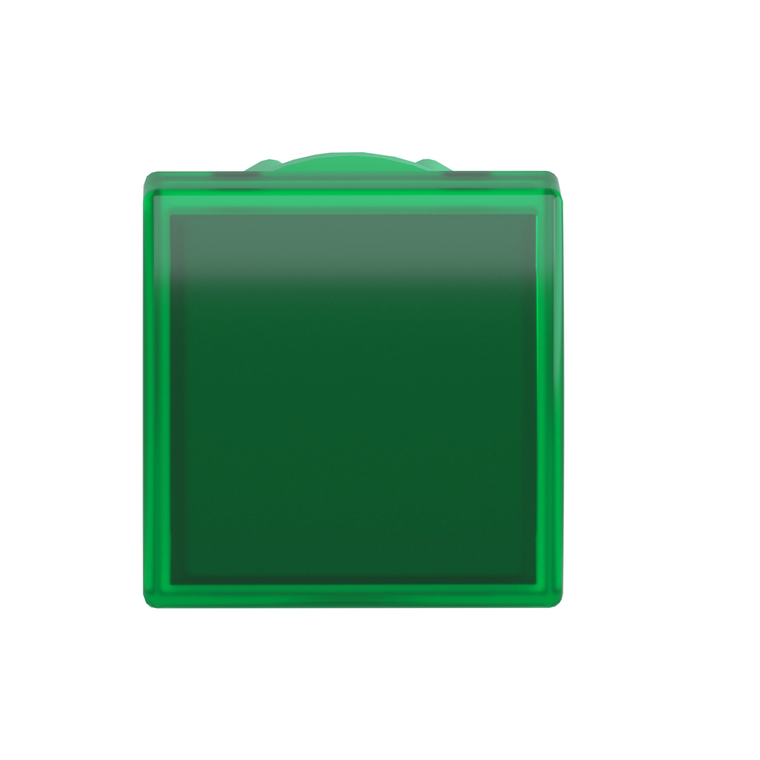

Schneider Electric ZB5CV033 Pilot Light Head
This green plain lens head for universal LED pilot light is designed to last without maintenance. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Device Presentation:
- basic element
- Electrical Composition Code:
- P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED || PR1 rear mounting integral LED
- Ip Degree Of Protection:
- IP66 IEC 60529
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Mercury Free:
- Yes
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ambient Air Temperature For Operation:
- -25-70 °C
- Head Type:
- standard
- Cad Overall Depth:
- 29 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Operator Additional Information:
- with plain lens
- Reach Free Of Svhc:
- Yes
- Overvoltage Category:
- class II IEC 60536
- Cad Overall Height:
- 30 mm
- Environmental Disclosure:
- ENVPEP1710010EN
- Sale Per Indivisible Quantity:
- 1
- Cap/Operator Or Lens Colour:
- green
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Cad Overall Width:
- 30 mm
- Range Of Product:
- Harmony XB5
- Product Or Component Type:
- head for pilot light
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Bezel Material:
- dark grey plastic
- Standards:
- UL 508 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C8201-1
- Mounting Diameter:
- 22 mm
- Product Compatibility:
- universal LED
- Shape Of Signaling Unit Head:
- square
- Ambient Air Temperature For Storage:
- -40-70 °C
- Protective Treatment:
- TH
- Ik Degree Of Protection:
- IK05 IEC 50102
- Device Short Name:
- ZB5
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Circularity Profile:
- ENVEOLI1710010EN
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Toxic Heavy Metal Free:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Net Weight:
- 0.02 kg
