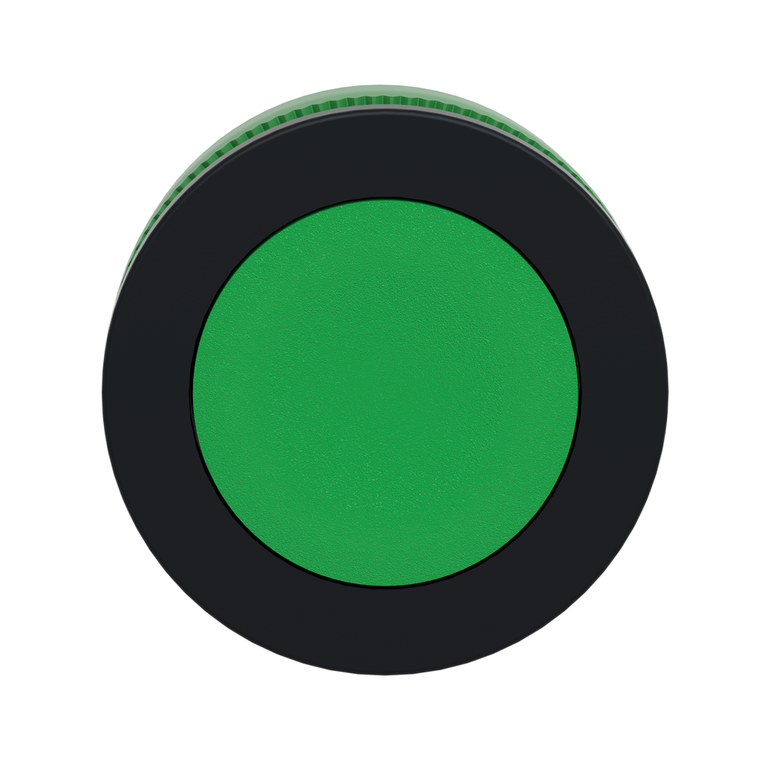

Schneider Electric ZB5FA3 Flush Mounted Green Flush Caps Pushbutto
Schneider Electric
$9.78
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Environmental Disclosure:
- ENVPEP1710010EN
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity:
- 1
- Shape Of Signaling Unit Head:
- round
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Depth:
- 30 mm
- Product Or Component Type:
- head for non-illuminated push-button
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ik Degree Of Protection:
- IK03 IEC 50102
- Product Certifications:
- BV || UL Listed || CSA || LROS (Lloyds register of shipping) || GL || DNV
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- X
- Device Short Name:
- ZB5
- Range Of Product:
- Harmony XB5
- Mounting Diameter:
- 30.5 mm
- Cad Overall Height:
- 37 mm
- Warranty:
- 18 months
- Head Type:
- built-in-flush
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Profile:
- green flush, unmarked
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Bezel Material:
- dark grey plastic
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Width:
- 37 mm
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Mechanical Durability:
- 10000000 cycles
- Ambient Air Temperature For Storage:
- -40-70 °C
- Net Weight:
- 0.03 kg
- Ambient Air Temperature For Operation:
- -40-70 °C
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Overvoltage Category:
- class II IEC 60536
- Type Of Operator:
- spring return
- Device Presentation:
- basic element
- Standards:
- UL 508 || IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
- Protective Treatment:
- TH
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
