Schneider Electric ZB5FA38C0 Flmnt Green Cap Pbhead-Legend Insertion

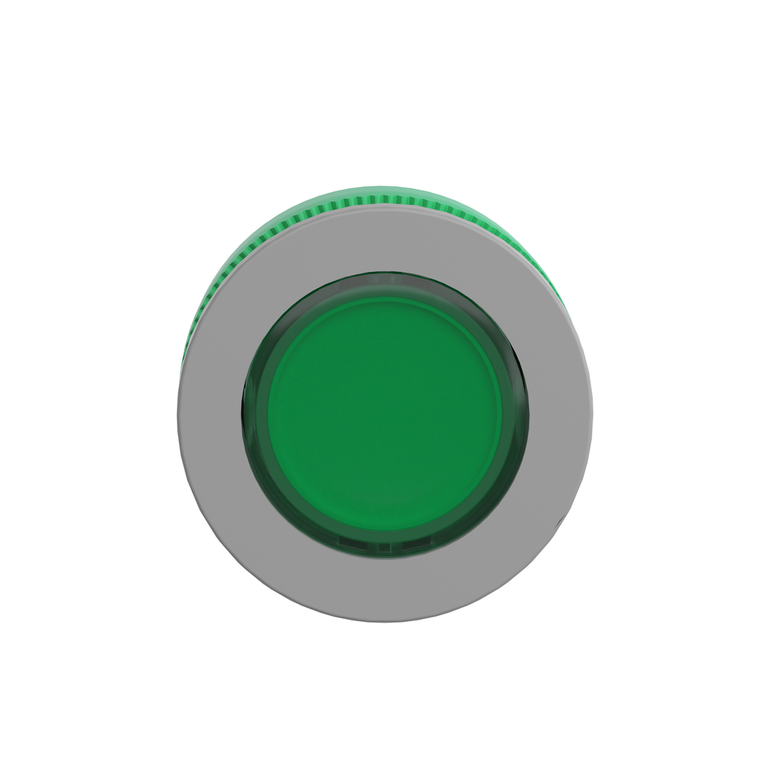

This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Operator Additional Information:
- for insertion of legend
- Cap/Operator Or Lens Colour:
- green
- Range Of Product:
- Harmony XB5
- Operator Profile:
- green flush, unmarked
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Group Of Product:
- flush push with inser of legend
- Mounting Diameter:
- 30.5 mm
- Device Presentation:
- basic element
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Marking:
- unmarked
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Height:
- 37 mm
- China Rohs Regulation:
- X
- Protective Treatment:
- TC
- Cad Overall Depth:
- 30 mm
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.017 kg
- Mechanical Durability:
- 10000000 cycles
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Width:
- 37 mm
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || C4 6 s
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Or Component Type:
- head for illuminated push-button
- Product Certifications:
- CSA || BV || UL Listed || DNV || LROS (Lloyds register of shipping) || GL
- Main Group:
- illum push-button
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- ZB5
- Product Compatibility:
- universal LED
- Shape Of Signaling Unit Head:
- round
- Type Of Operator:
- spring return
- Overvoltage Category:
- class II IEC 60536
- Mercury Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Bezel Material:
- plastic colour plated grey
- Ik Degree Of Protection:
- IK03 EN 50102
- Sale Per Indivisible Quantity:
- 1
- Head Type:
- built-in-flush
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Standards:
- UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || GB 14048.5 || EN/IEC 60947-5-4 || JIS C8201-1
