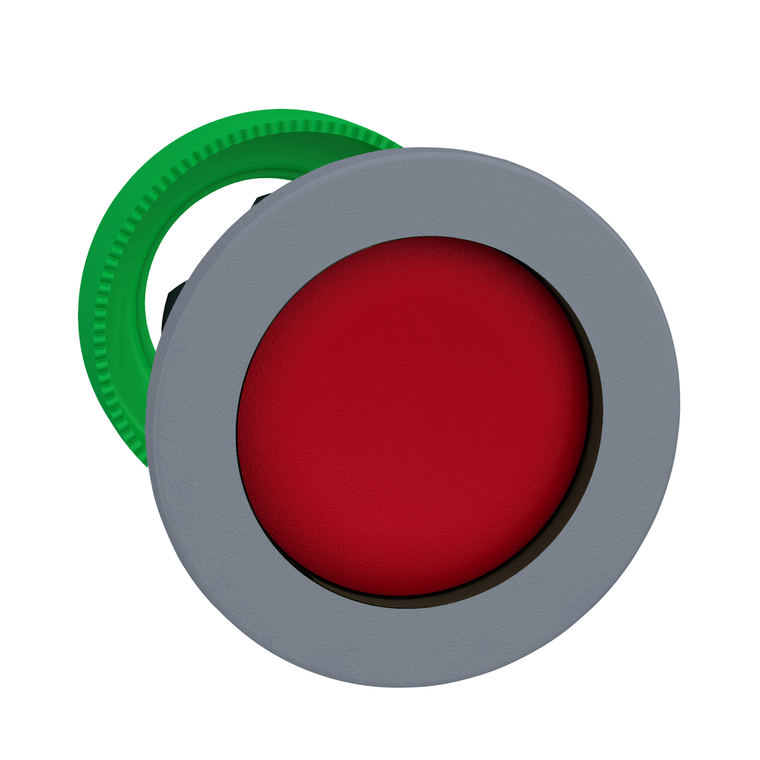

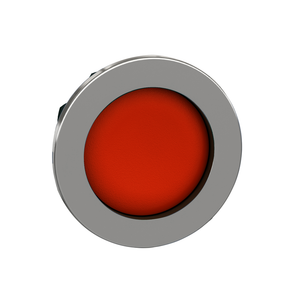

Schneider Electric ZB5FA46C0 Flush Mounted Red Pb Head Recessed

Schneider Electric ZB5FA46C0 Flush Mounted Red Pb Head Recessed

Schneider Electric
SKU:
ZB5FA46C0
|
UPC:
3606489771140
Availability:
Contact us to confirm availability and lead times.
$32.38
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
Additional Information
Vibration Resistance:
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Electrical Composition Code:
C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
Operator Additional Information:
high guard
Cad Overall Depth:
30 mm
Overvoltage Category:
class II IEC 60536
Mercury Free:
Yes
Mechanical Durability:
10000000 cycles
Head Type:
built-in-flush
Range Of Product:
Harmony XB5
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Cad Overall Width:
37 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Device Short Name:
ZB5
Warranty:
18 months
Type Of Operator:
spring return
China Rohs Regulation:
X
Protective Treatment:
TH
Cad Overall Height:
37 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Compatibility:
ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
Mounting Diameter:
30.5 mm
Rohs Exemption Information:
Yes
Net Weight:
0.03 kg
Bezel Material:
plastic colour plated grey
Product Or Component Type:
head for non-illuminated push-button
Shape Of Signaling Unit Head:
round
Device Presentation:
basic element
Ik Degree Of Protection:
IK03 IEC 50102
Operator Profile:
red recessed, unmarked
Sale Per Indivisible Quantity:
1
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529
Ambient Air Temperature For Operation:
-40-70 °C
Ambient Air Temperature For Storage:
-40-70 °C
Product Certifications:
GL || LROS (Lloyds register of shipping) || BV || CSA || DNV || UL Listed
