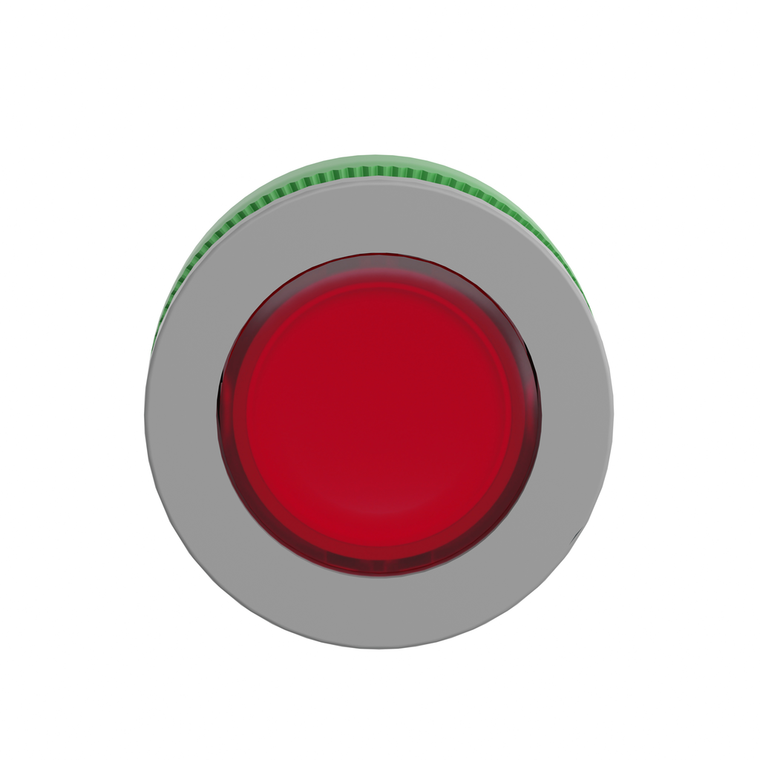

Schneider Electric ZB5FA48C0 Flmnt Red Cap Pbhead-Legend Insertion
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67
- Shape Of Signaling Unit Head:
- round
- Device Short Name:
- ZB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Head Type:
- built-in-flush
- Mounting Diameter:
- 30.5 mm
- Cad Overall Depth:
- 30 mm
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Sale Per Indivisible Quantity:
- 1
- Main Group:
- illum push-button
- Cap/Operator Or Lens Colour:
- red
- Range Of Product:
- Harmony XB5
- Bezel Material:
- plastic colour plated grey
- Product Or Component Type:
- head for illuminated push-button
- Cad Overall Width:
- 37 mm
- Mechanical Durability:
- 10000000 cycles
- Ambient Air Temperature For Operation:
- -40-70 °C
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || C4 6 s
- Product Compatibility:
- universal LED
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-1 || GB 14048.5 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1
- Operator Additional Information:
- for insertion of legend
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ik Degree Of Protection:
- IK03 EN 50102
- Overvoltage Category:
- class II IEC 60536
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Protective Treatment:
- TC
- Net Weight:
- 0.017 kg
- Type Of Operator:
- spring return
- Group Of Product:
- flush push with inser of legend
- Rohs Exemption Information:
- Yes
- Marking:
- unmarked
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation:
- X
- Product Certifications:
- GL || DNV || LROS (Lloyds register of shipping) || BV || UL Listed || CSA
- Operator Profile:
- red flush, unmarked
- Device Presentation:
- basic element
- Cad Overall Height:
- 37 mm
- Datasheet:
- View
