Schneider Electric ZB5FA58 Flush Mounted Yellow Flush Caps Pushbutt

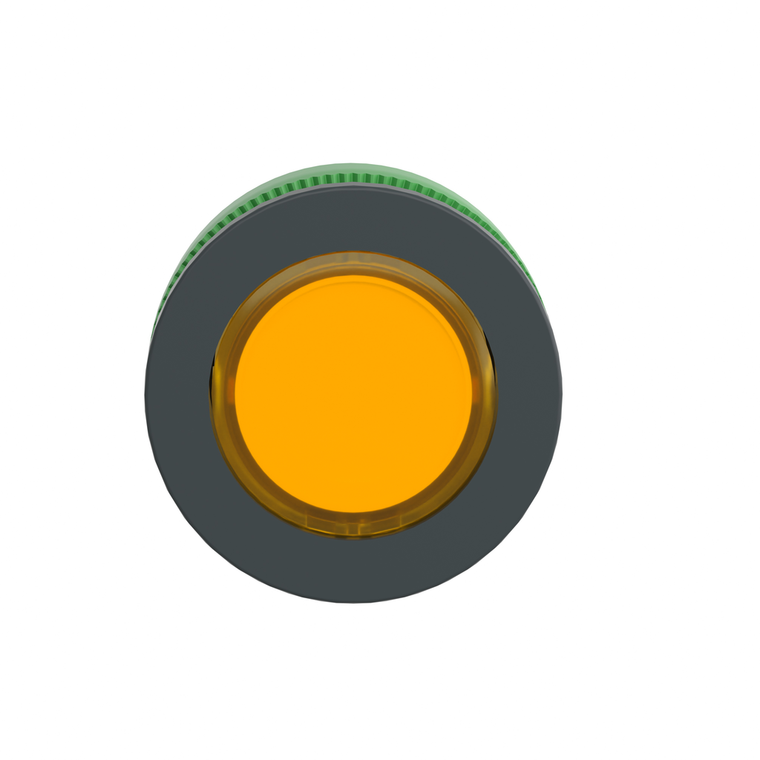

This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Type Of Operator:
- spring return
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Circularity Profile:
- ENVEOLI1710010EN
- Overvoltage Category:
- class II IEC 60536
- Toxic Heavy Metal Free:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Protective Treatment:
- TC
- Product Compatibility:
- universal LED
- Operator Profile:
- orange flush, unmarked
- Sale Per Indivisible Quantity:
- 1
- Ik Degree Of Protection:
- IK03 EN 50102
- Marking:
- unmarked
- Mercury Free:
- Yes
- Cap/Operator Or Lens Colour:
- orange
- Device Short Name:
- ZB5
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.017 kg
- Reach Free Of Svhc:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Product Certifications:
- GL || CSA || DNV || BV || LROS (Lloyds register of shipping) || UL Listed
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Bezel Material:
- dark grey plastic
- Range Of Product:
- Harmony XB5
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1710010EN
- Standards:
- GB 14048.5 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
- Head Type:
- built-in-flush
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Width:
- 37 mm
- China Rohs Regulation:
- X
- Mounting Diameter:
- 30.5 mm
- Product Or Component Type:
- head for illuminated push-button
- Main Group:
- illum push-button
- Group Of Product:
- flush push with inser of legend
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Electrical Composition Code:
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || C4 6 s
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 10000000 cycles
- Cad Overall Height:
- 37 mm
- Operator Additional Information:
- for insertion of legend
- Cad Overall Depth:
- 30 mm
