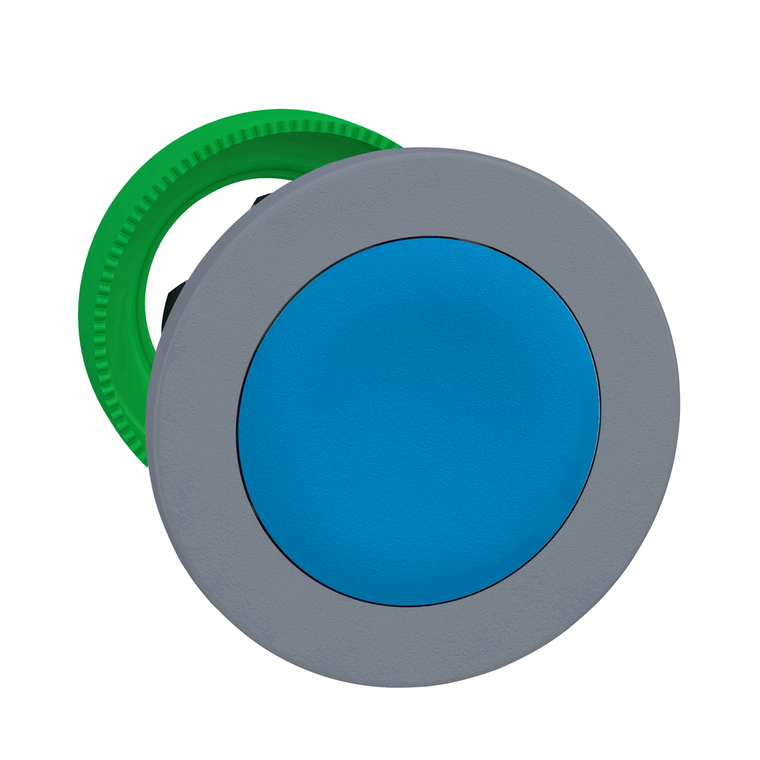

Schneider Electric ZB5FA66C0 Flush Mounted Blue Pb Head Recessed
Schneider Electric
$32.38
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FA66C0 Flush Mounted Blue Pb Head Recessed
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.03 kg
- Cad Overall Height:
- 37 mm
- Cad Overall Width:
- 37 mm
- Product Or Component Type:
- head for non-illuminated push-button
- Operator Additional Information:
- high guard
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- China Rohs Regulation:
- X
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Warranty:
- 18 months
- Bezel Material:
- plastic colour plated grey
- Operator Profile:
- blue recessed, unmarked
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Mercury Free:
- Yes
- Device Short Name:
- ZB5
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Range Of Product:
- Harmony XB5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Depth:
- 30 mm
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Ambient Air Temperature For Storage:
- -40-70 °C
- Standards:
- IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Ik Degree Of Protection:
- IK03 IEC 50102
- Product Certifications:
- GL || UL Listed || DNV || LROS (Lloyds register of shipping) || CSA || BV
- Mechanical Durability:
- 10000000 cycles
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Shape Of Signaling Unit Head:
- round
- Mounting Diameter:
- 30.5 mm
- Overvoltage Category:
- class II IEC 60536
- Protective Treatment:
- TH
- Device Presentation:
- basic element
- Head Type:
- built-in-flush
- Sale Per Indivisible Quantity:
- 1
- Type Of Operator:
- spring return
- Datasheet:
- View
