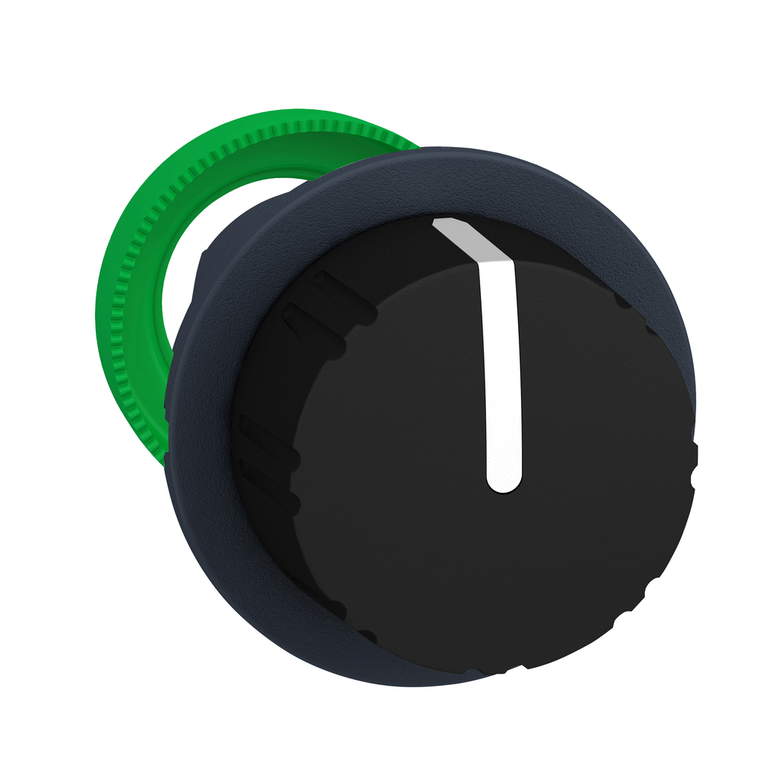

Schneider Electric ZB5FD59 Flush Mounted Black Selector Switch Head
Schneider Electric
$29.70
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB5FD59 Flush Mounted Black Selector Switch Head
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Range Of Product:
- Harmony XB5
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Operator Profile:
- black knurled knob
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Depth:
- 46 mm
- Product Certifications:
- UL Listed || CSA || GL || DNV || BV || LROS (Lloyds register of shipping)
- Product Or Component Type:
- head for selector switch
- Toxic Heavy Metal Free:
- Yes
- Circularity Profile:
- ENVEOLI1710010EN
- Cad Overall Width:
- 37 mm
- Type Of Operator:
- to centre spring return
- Sustainable Offer Status:
- Green Premium product
- Device Short Name:
- ZB5
- Ip Degree Of Protection:
- IP69 || IP69K || IP66 IEC 60529 || IP67
- Rohs Exemption Information:
- Yes
- Standards:
- EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1
- Reach Free Of Svhc:
- Yes
- Overvoltage Category:
- class II IEC 60536
- Electrical Composition Code:
- C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3
- Shape Of Signaling Unit Head:
- round
- Environmental Disclosure:
- ENVPEP1710010EN
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Sale Per Indivisible Quantity:
- 1
- Ik Degree Of Protection:
- IK03 IEC 50102
- Mercury Free:
- Yes
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mechanical Durability:
- 1000000 cycles
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Bezel Material:
- dark grey plastic
- Ambient Air Temperature For Operation:
- -40-70 °C
- Cad Overall Height:
- 37 mm
- Operator Position Information:
- 3 positions +/- 45°
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mounting Diameter:
- 30.5 mm
- Net Weight:
- 0.034 kg
- Protective Treatment:
- TH
- Head Type:
- built-in-flush
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- X
