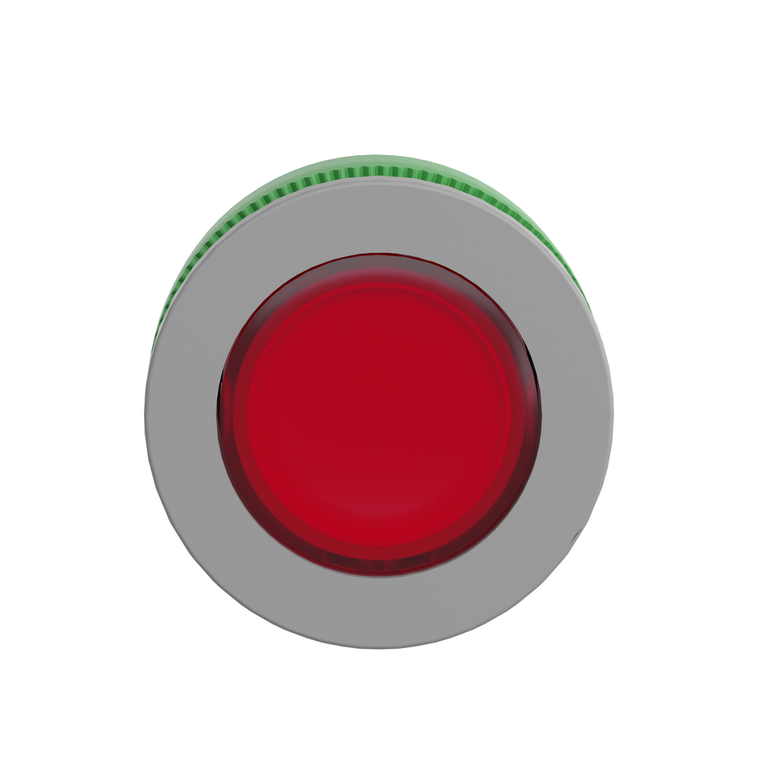

Schneider Electric ZB5FH043C0 Flush Mount Red Flush Caps Illum Pb Head
This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Ambient Air Temperature For Operation:
- -40-70 °C
- Overvoltage Category:
- class II IEC 60536
- Operator Profile:
- red flush, unmarked
- Net Weight:
- 0.03 kg
- Electrical Composition Code:
- C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || C9 3 single front mounting
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Mechanical Durability:
- 500000 cycles
- Device Presentation:
- basic element
- Cad Overall Width:
- 37 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ik Degree Of Protection:
- IK03 IEC 50102
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-70 °C
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Standards:
- UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sale Per Indivisible Quantity:
- 1
- Product Certifications:
- UL Listed || CSA
- Mounting Diameter:
- 30.5 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Cad Overall Height:
- 37 mm
- Product Compatibility:
- universal LED
- Bezel Material:
- plastic colour plated grey
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Product Or Component Type:
- head for illuminated push-button
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Rohs Exemption Information:
- Yes
- Device Short Name:
- ZB5F
- Range Of Product:
- Harmony XB5
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Type Of Operator:
- push-push
- Cad Overall Depth:
- 30 mm
- China Rohs Regulation:
- X
- Head Type:
- built-in-flush
- Shape Of Signaling Unit Head:
- round
- Toxic Heavy Metal Free:
- Yes
- Protective Treatment:
- TH
