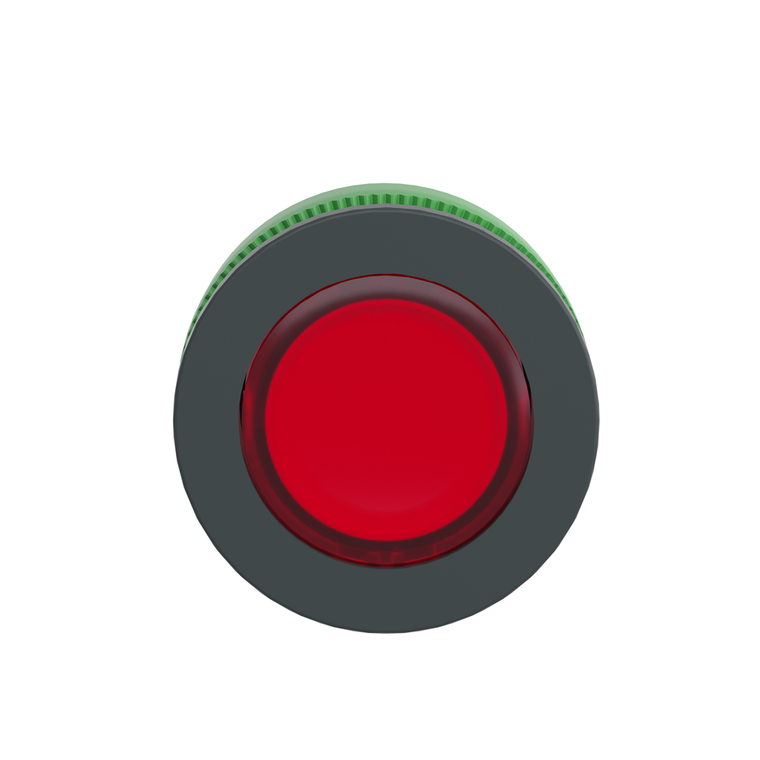

Schneider Electric ZB5FV043 Flush Mounted Red Pilot Light Head For I

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FV043 Flush Mounted Red Pilot Light Head For I

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FV043

UPC:

3606481340757

MPN:

Condition:

New

Standards:

EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1 || ISO 21702 || ISO 22196:2011

Cap/Operator Or Lens Colour:

red

Product Compatibility:

universal LED

Ambient Air Temperature For Storage:

-40-70 °C

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Net Weight:

0.015 kg

Mounting Diameter:

30.5 mm

Electrical Composition Code:

P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED

Sustainable Offer Status:

Green Premium product

Sale Per Indivisible Quantity:

1

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

China Rohs Regulation:

X

Reach Free Of Svhc:

Yes

Protective Treatment:

TH

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

ENVEOLI1710010EN

Toxic Heavy Metal Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Overvoltage Category:

class II IEC 60536

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Cad Overall Depth:

30 mm

Environmental Disclosure:

ENVPEP1710010EN

Device Short Name:

ZB5

Operator Additional Information:

with plain lens

Product Or Component Type:

head for pilot light

Mercury Free:

Yes

Device Presentation:

basic element

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ik Degree Of Protection:

IK03 IEC 50102

Bezel Material:

dark grey plastic

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Shape Of Signaling Unit Head:

round

Cad Overall Width:

37 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Cad Overall Height:

37 mm

Head Type:

built-in-flush

Range Of Product:

Harmony XB5

Ambient Air Temperature For Operation:

-40-70 °C

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
