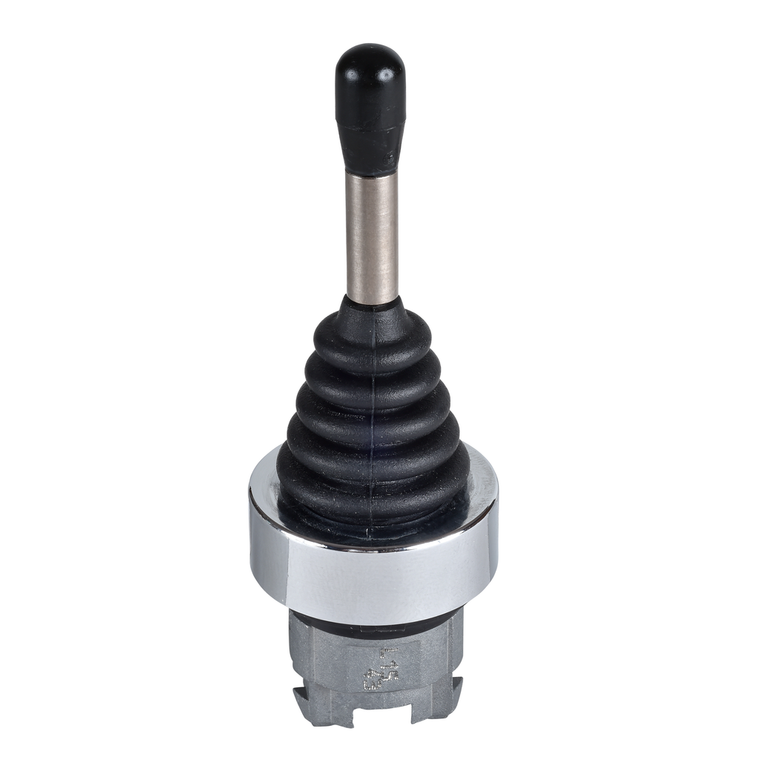

Schneider Electric ZD4PA14 Joystick Component
This Harmony XB4 head for joystick controller operates with 4 direction stay-put mechanism. It has a chromium-plated metal bezel. This head with operating shaft provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers and provide a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
- China Rohs Regulation:
- X
- Shape Of Signaling Unit Head:
- round
- Ambient Air Temperature For Operation:
- -25-70 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Type Of Operator:
- stay put
- Operator Profile:
- 54 mm long operating shaft
- Sale Per Indivisible Quantity:
- 1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Position Information:
- 5 positions
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Product Or Component Type:
- head for joystick controller
- Protective Treatment:
- TH
- Net Weight:
- 0.022 kg
- Rohs Exemption Information:
- Yes
- Ik Degree Of Protection:
- IK03 IEC 50102
- Mechanical Durability:
- 1000000 cycles
- Electrical Shock Protection Class:
- class I IEC 60536
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ambient Air Temperature For Storage:
- -40-70 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Operator Direction Information:
- 4 directions
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Bezel Material:
- chromium plated metal
- Device Short Name:
- ZB4
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mercury Free:
- Yes
- Product Certifications:
- UL Listed || DNV || LROS (Lloyds register of shipping) || GL || CSA || BV
- Standards:
- JIS C8201-5-1 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Range Of Product:
- Harmony XB4
- Mounting Diameter:
- 22 mm
- Warranty:
- 18 months
- Ip Degree Of Protection:
- IP66 IEC 60529
- Device Presentation:
- basic element
