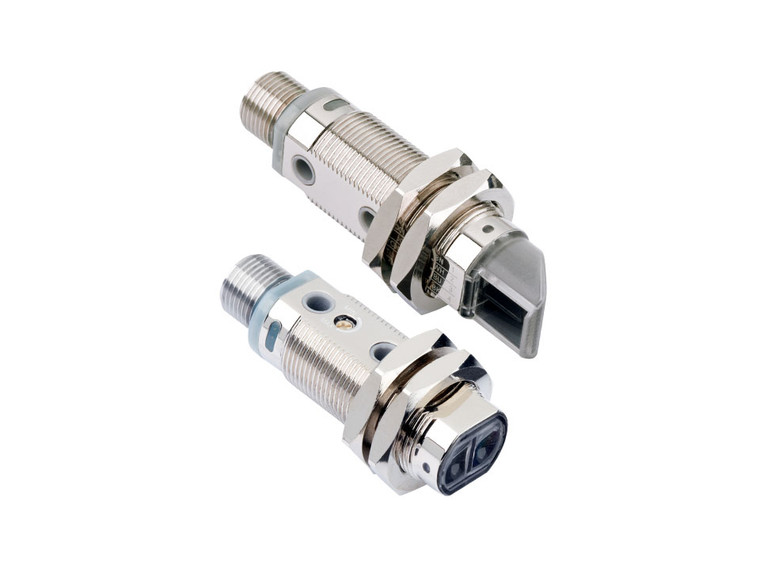

SensoPart FR 18-2 RWM-PS-L4 Photoelectric retro-reflective sensor
Sensopart
The SensoPart FR 18-2 RWM-PS-L4 is engineered for high precision and reliability in industrial settings. Its robust metal threaded housing and red LED light source ensure accurate detection up to 2400 mm. Equipped with a polarization filter and straight light exit, it excels in various applications. The sensor features a PNP switching output and operates at a velocity of 1000 Hz for rapid performance. Customization is made easy with an adjustable potentiometer. It functions efficiently within a temperature range of -25 to +55°C and boasts an IP67 rating for superior dust and water resistance. Connectivity is seamless with a durable metal plug M12, 4-pin. Access comprehensive resources including datasheets, catalogs, operating instructions, and CAD files for further details.
- Sensor principle:
- Photoelectric retro-reflective sensor
- Series:
- M18
- Working distance min. [mm]:
- 0
- Working distance max. [mm]:
- 2400
- Velocity [Hz]:
- 1000
- Adjustment:
- Potentiometer
- Light source:
- LED, red
- Switching output:
- PNP
- Temperature range [°C]:
- -25 ... +55
- Connection type:
- Metal plug M12, 4-pin
- Enclosure rating:
- IP 67
