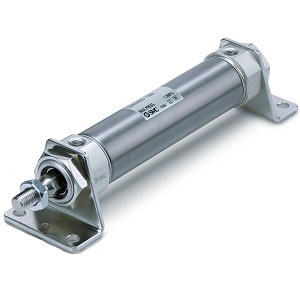

SMC 10-CM2B40-100Z | Clean Room Standard Air Cylinder CM2 Series 40mm Bore 100mm Stroke Double-Acting Single Rod Auto-Switch Ready Stainless Tube

The SMC 10-CM2B40-100Z is a clean room specification standard air cylinder from the CM2 series with a 40mm bore and 100mm stroke. Part number decoded: CM2 = standard round body cylinder (stainless steel tube), B = basic mount, 40 = bore mm, 100 = stroke mm, Z = auto-switch groove. The 40mm bore is the largest available in the CM2 series, generating approximately 754N at 0.6 MPa — significant force for demanding clean room clamping, pressing, and material handling applications. This delivers over 4x the force of the CM2B20 without stepping up to larger cylinder families.

The 100mm stroke provides medium-range travel suitable for workpiece transfer, fixture positioning, gate actuation, and pushing operations on clean room assembly lines. The stainless steel tube construction resists corrosion in clean room washdown and humid environments. Operating pressure range is 0.05 to 1.0 MPa with standard 1/4" ports. The basic (B) mount accepts interchangeable mounting accessories including foot brackets, flange adapters, and trunnion pivots.

The CM2B40-100Z delivers maximum CM2 force at medium stroke. For longer strokes at 40mm bore, see CM2B40-125Z, CM2B40-150Z, or CM2B40-200Z. For front flange mounting at this bore/stroke, specify CM2F40-100Z. All CM2B40 variants share identical bore specifications, port sizes, and mounting accessory compatibility. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant. Compatible with SMC D-A series auto switches for 40mm bore cylinders and AS series speed controllers for precise velocity adjustment.
