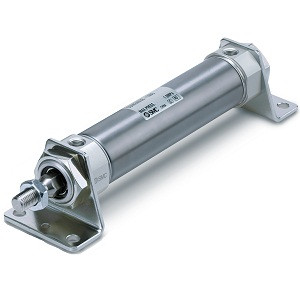

SMC 10-CM2F40-100Z | Clean Room Standard Air Cylinder CM2 Series 40mm Bore 100mm Stroke Front Flange Mount Double-Acting Auto-Switch Ready Stainless Tube
SMC
$93.30
The SMC 10-CM2F40-100Z is a clean room specification standard air cylinder from the CM2 series with a 40mm bore, 100mm stroke, and front flange mounting. Part number decoded: CM2 = standard round body stainless tube, F = front flange mount, 40 = bore mm, 100 = stroke mm, Z = auto-switch groove. This is the front flange variant of the CM2B40-100Z, combining the highest CM2 force output (40mm bore) with rigid panel-mount installation via the rod-side flange.
The front flange provides a concentric, rigid mounting point at the rod end, eliminating angular misalignment that can occur with foot-mount or through-bolt installations. At 40mm bore generating approximately 754N at 0.6 MPa, this is a heavy-duty actuator for clean room pressing operations, high-force clamping, panel pushing, and automated gate mechanisms where the cylinder mounts flush to an equipment frame. The panel-flush installation is ideal for automated gates and high-force clamping stations. The stainless steel tube construction provides corrosion resistance in humid environments.
The CM2F40-100Z shares identical bore, stroke, port size (1/4"), and performance specifications with the CM2B40-100Z only mounting differs. For basic mount, use CM2B40-100Z. For rear flange, specify CM2L40-100Z. For longer travel with front flange, see CM2F40-125Z or CM2F40-160Z. All CM2F40 variants use the same front flange bolt pattern. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant. Compatible with SMC D-A auto switches and AS speed controllers.
- Series:
- 10-CM2-Z (Clean Room)
- Cylinder Type:
- Standard Round Body (Stainless Tube)
- Action:
- Double-Acting
- Rod:
- Single Rod
- Bore:
- 40mm
- Stroke:
- 100mm
- Mounting:
- Front Flange (F)
- Piston:
- Magnetic
- Auto-Switch:
- Compatible (Z groove)
- Force at 0.6 MPa:
- ~754N
- Port Size:
- 1/4"
- Tube Material:
- Stainless Steel
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
