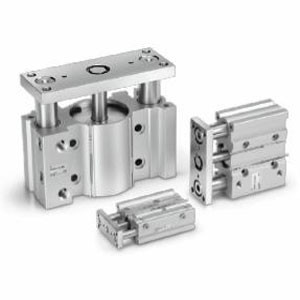

SMC 12-MGPL25TN-300Z | Clean Room Compact Guide Cylinder MGPL Series 25mm Bore 300mm Stroke TN Non-Rotating Long Travel
SMC
$714.20
The SMC 12-MGPL25TN-300Z is a clean room specification compact guide cylinder from the MGPL series with TN non-rotating table and extended 300mm stroke. Part number decoded: MGPL = MGPL compact guide cylinder, 25 = 25mm bore, TN = non-rotating table, 300 = 300mm stroke, Z = clean room auto-switch groove. The 300mm stroke is one of the longest available in the MGPL25 range.
The 300mm stroke at 25mm bore with TN non-rotating guidance provides extended precision-guided travel for long-reach clean room operations. The linear guide mechanism maintains alignment throughout the full 300mm stroke without the accuracy degradation that can occur in long-stroke ball bushing guides. Applications include extended-reach component transfer, long-stroke pressing operations, and precision fixture positioning where the actuator must maintain angular alignment over a substantial travel distance.
The MGPL25TN-300Z provides the longest TN stroke at 25mm bore. For shorter stroke TN at 25mm, the MGPL25TN is available in standard increments. For the same 300mm stroke without TN, the MGPL25-300Z provides standard guide operation. For larger bore TN at long stroke, the MGPL32TN and MGPL63TN provide increased force. Auto switches mount in the Z groove (sold separately). Clean series (12-) fluorine grease. RoHS compliant.
- Series:
- 12-MGPL-Z (Clean Room)
- Cylinder Type:
- Compact Guide (Linear Guide)
- Action:
- Double-Acting
- Guide:
- Linear Bearing
- Bore:
- 25mm
- Stroke:
- 300mm
- Feature:
- TN Non-Rotating Table
- Auto-Switch:
- Compatible (Z Groove)
- Clean Room Grade:
- 12-
- Certifications:
- RoHS
