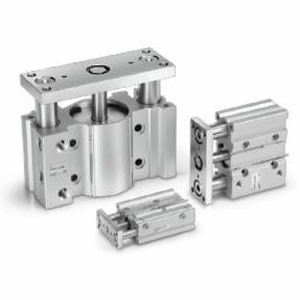

SMC 13-MGPL63TN-50Z | Clean Room Compact Guide Cylinder MGPL Series 63mm Bore 50mm Stroke TN Non-Rotating Maximum Force
SMC
$681.20
The SMC 13-MGPL63TN-50Z is a clean room specification compact guide cylinder from the MGPL series with the largest 63mm bore and TN non-rotating table. Part number decoded: MGPL = MGPL compact guide cylinder, 63 = 63mm bore (largest in the MGPL range), TN = non-rotating table, 50 = 50mm stroke, Z = clean room auto-switch groove. This delivers the absolute maximum force output in the MGPL compact guide platform.
At 63mm bore, the MGPL generates approximately 187N at 0.6 MPa the highest force available in the compact guide cylinder range. The TN non-rotating table provides the most rigid guidance with zero angular play, creating a precision high-force pressing and clamping actuator. The 50mm stroke provides moderate travel for heavy-duty clean room pressing, component insertion, fixture clamping, and force application operations where maximum guided force is required.
The MGPL63TN-50Z is the flagship MGPL configuration for maximum force with precision guidance. For the 50mm bore at the same stroke, the MGPL50-50Z-M9PWL provides a step-down in force. For the 32mm TN, the MGPL32TN-25Z provides mid-range force. For even longer strokes at 63mm bore, the MGPL63TN series offers extended options. For guided pressing beyond the MGPL63, consult SMC for hydraulic or electro-pneumatic press alternatives. Auto switches mount in the Z groove. Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MGPL-Z (Clean Room)
- Cylinder Type:
- Compact Guide (Linear Guide)
- Action:
- Double-Acting
- Guide:
- Linear Bearing
- Bore:
- 63mm
- Stroke:
- 50mm
- Feature:
- TN Non-Rotating Table
- Force:
- Maximum (Largest MGPL Bore)
- Auto-Switch:
- Compatible (Z Groove)
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
