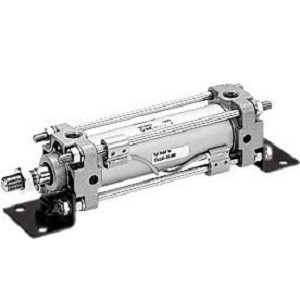

SMC 25A-CDA2B40-80Z | Secondary Battery Compatible Air Cylinder CA2 Series 40mm Bore 80mm Stroke Basic Mount
SMC
$206.95
The SMC 25A-CDA2B40-80Z is a secondary battery compatible air cylinder from the CA2 series. Part number decoded: CDA2 = CA2 double acting, B = basic mount (foot mount), 40 = 40mm bore, 80 = 80mm stroke, Z = auto-switch groove. The 25A- prefix designates secondary battery manufacturing compatibility.
The CA2 is SMC's standard tie-rod cylinder available in bore sizes from 40mm to 100mm+, designed for medium to heavy-duty actuation. The B (basic/foot) mount provides the standard base mounting configuration. At 40mm bore with 80mm stroke, this generates approximately 75N at 0.6 MPa. The CA2 is more robust than the CM2 mini cylinder, suited for higher-force applications in secondary battery production equipment including pressing, clamping, material handling, and fixture actuation.
The 25A-CDA2B40-80Z provides standard tie-rod actuation for battery manufacturing. For different bore sizes in the CA2 range, options include 50mm, 63mm, 80mm, and 100mm. For different mounting styles, C (clevis), D (double clevis), F (flange), and L (lock-up) options are available. The Z groove accepts D-series auto switches. For the smaller CM2 mini cylinder, the 25A-CDM2 series provides compact options. RoHS compliant.
- Series:
- 25A-CA2-Z (Secondary Battery)
- Cylinder Type:
- Tie-Rod
- Action:
- Double-Acting
- Rod:
- Single Rod
- Mounting:
- Basic (B/Foot)
- Bore:
- 40mm
- Stroke:
- 80mm
- Auto-Switch:
- Compatible (Z Groove)
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
