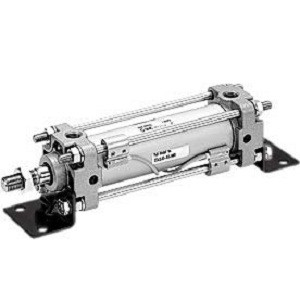

SMC 25A-CDA2T100-125Z | Secondary Battery Compatible Air Cylinder CA2 Series 100mm Bore 125mm Stroke T-Trunnion Mount
SMC
$737.44
The SMC 25A-CDA2T100-125Z is a secondary battery compatible air cylinder from the CA2 series with 100mm bore and trunnion mount. Part number decoded: CDA2 = CA2 double acting, T = trunnion mount, 100 = 100mm bore, 125 = 125mm stroke, Z = auto-switch groove.
The T (trunnion) mount provides a pivoting pin mount through the cylinder body, allowing the entire cylinder to swing on its mounting axis. Unlike clevis mount which provides pivot at the cylinder ends, trunnion mount provides the pivot at the cylinder's center, enabling different kinematic arrangements. At 100mm bore with 125mm stroke, this provides maximum CA2 force (approximately 471N) with center-pivot mounting for swinging and tilting actuation applications.
The 25A-CDA2T100-125Z provides maximum-force trunnion actuation. For flange mount at the same bore, the 25A-CDA2F100-150Z provides rigid concentric mounting. For clevis mount, the CDA2C100-150Z provides end-pivot. For smaller bore trunnion, the CA2 series offers various options. Auto switches mount in the Z groove. RoHS compliant.
- Series:
- 25A-CA2-Z (Secondary Battery)
- Cylinder Type:
- Tie-Rod
- Action:
- Double-Acting
- Rod:
- Single Rod
- Mounting:
- Trunnion (T)
- Bore:
- 100mm
- Stroke:
- 125mm
- Auto-Switch:
- Compatible (Z Groove)
- Application:
- Secondary Battery Manufacturing
- Certifications:
- RoHS
