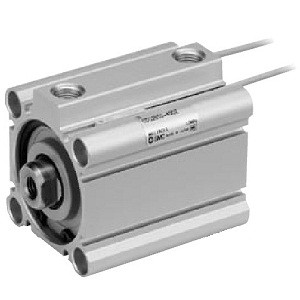

SMC 25A-CDQ2A100-25DZ 25A-CQ2 Series Compatible With Secondary Batteries Compact Cylinder

SMC 25A-CDQ2A100-25DZ | Secondary Battery Compatible Compact Cylinder CQ2 Series 100mm Bore 25mm Stroke Basic

SMC
SKU:
25A-CDQ2A100-25DZ
Availability:
Factory Stock
$469.80
Condition:
New
Current Stock:
Description

The SMC 25A-CDQ2A100-25DZ is a secondary battery compatible compact cylinder with 100mm bore and 25mm stroke in basic D configuration. Part number decoded: CDQ2 = CQ2 double acting, A = A-type, 100 = 100mm bore, 25 = 25mm stroke, D = option, Z = auto-switch groove. Base unit without auto-switch.

The 25mm stroke at 100mm bore provides high-force short-travel compact actuation. At approximately 471N through 25mm, this handles precision pressing, heavy clamping, and contact force applications. The D option provides specific internal configuration. This is the most economical maximum-bore CQ2 at short stroke.

The 25A-CDQ2A100-25DZ provides base high-force short-stroke CQ2. For auto-switch, add M9BWL/M9NL suffixes. For the 15mm ultra-short stroke with switch, the CDQ2A100-15DCMZ provides minimal travel. For the 100mm equal-bore-stroke, the CDQ2A100-100DCMZ provides moderate travel. Auto switches mount in the Z groove. RoHS compliant.

Additional Information
Series:
25A-CQ2 (Secondary Battery)
Cylinder Type:
Compact
Action:
Double-Acting
Bore:
100mm
Stroke:
25mm
Option:
D
Auto-Switch:
Compatible (Z Groove)
Application:
Secondary Battery Manufacturing
Certifications:
RoHS
