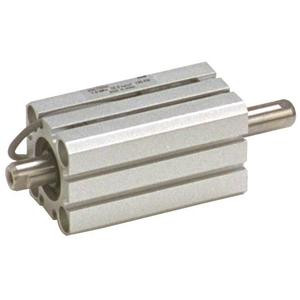

SMC CDQSWB12-20DM-M9PWSDPC CQSW Series Compact Cylinder
SKU:
CDQSWB12-20DM-M9PWSDPC
UPC:
MPN:
CDQSWB12-20DM-M9PWSDPC
Condition:
New
Built-in Magnet:
Built-in Magnet
Mounting Style:
Through-hole/Both Ends Tapped Common (Standard)
Bore Size:
Bore Size 12 mm
Cylinder Stroke:
Standard Stroke 20 mm
Option:
Rod End Male Thread
Auto Switch:
2-color Indicator, Solid State Auto Switch, With Pre-wired Connector M12-4 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
With this compact square type, auto switch mounting on three or; four sides is possible. This compact cylinder does not protrude from; the body when mounting an auto switch;
Added pivot brackets for double clevis and compact type foot brackets;
With auto switch (Series CDQS: CDQS, CDQSW, CDQSK, CDQSKW,CDQS S)
