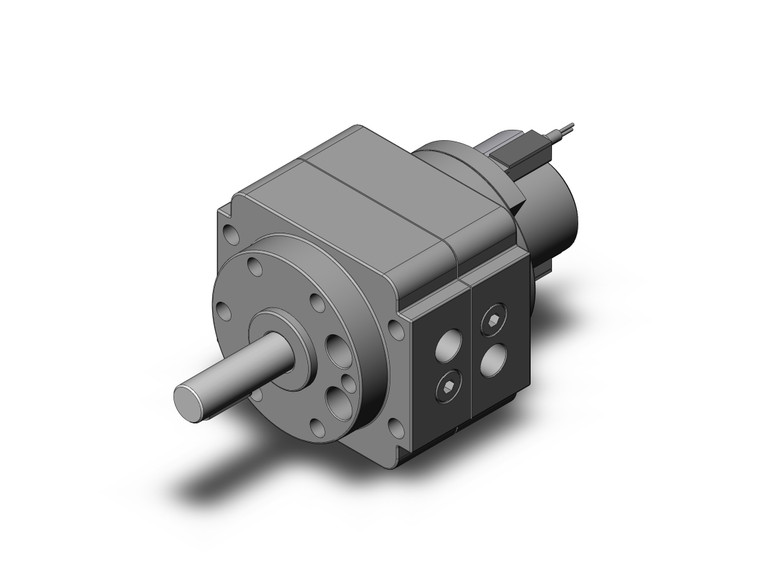

SMC CDRB1BW50-90D-S7PSAPC-XN CRB1 Series Rotary Actuator Vane Type
SMC
$337.80
The SMC CDRB1BW50-90D-S7PSAPC-XN is a versatile rotary actuator from the CRB1 Series, designed for precision and flexibility in industrial applications. This vane type actuator allows for customizable auto switch mounting positions, ensuring adaptability to various setups. It features direct mounting capabilities and offers selectable connection port positions, including side ported and axial ported options, to suit different installation requirements. Operating efficiently at low pressures starting from 0.15 MPa, this actuator is ideal for sizes ranging from 50 to 100. Additionally, it comes equipped with an auto switch, compatible with Series CDRB1 and CDVRB1, enhancing its functionality and ease of use.
- With Auto Switch(Built-in Magnet):
- With Auto Switch
- Mounting Style:
- Basic
- Shaft Type:
- Double Shaft (Long Shaft Key & Four Chamfers)
- Size:
- 50
- Option 1:
- Standard
- Rotation Angle:
- 90°
- Vane Type:
- Double Vane
- Connecting Port:
- Side Ported
- Option 2:
- Standard
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- NPT
