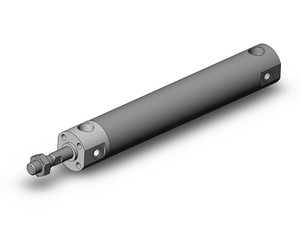

SMC CG1BN20-50Z Air Cylinder, Double Acting, Single Rod, 20mm Bore, 50mm Stroke

The SMC CG1BN20-50Z CG1 Cylinder is a robust and versatile solution for your pneumatic applications, designed with precision and efficiency in mind. This double-acting, single rod air cylinder is part of the esteemed C(D)G1-Z series, renowned for its adaptability across a wide range of industrial settings. Engineered with an impact extruded aluminum tube, the CG1BN20-50Z ensures an exceptionally smooth internal finish, facilitating low break-away pressure and seamless stroke action. This feature is critical for applications requiring precise control and reliability. The cylinder is available in eight bore sizes, including 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm, making it suitable for diverse operational needs. The CG1BN20-50Z is equipped with female piston rod threads as a standard option, enhancing its compatibility with various mounting configurations. The absence of trunnion mounting female threads further simplifies installation and maintenance. Additionally, the cylinder is auto switch capable, allowing for easy fine adjustment of the auto switch position, which is essential for optimizing performance in automated systems. For engineers and manufacturing professionals seeking a reliable and efficient air cylinder, the SMC CG1BN20-50Z offers a comprehensive solution with its range of mounting bracket options and robust construction. Explore the detailed specifications in the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf) and access the [AutoCAD File](https://models.smcetech.com/CG1BN20-50Z/dl3d/step/AP214/CG1BN20-50Z.step.zip) for seamless integration into your design projects.
