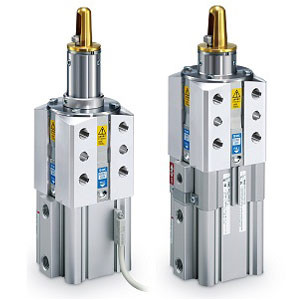

SMC CKQGDA50-250DBLZ C(L)KQG Series Pin Clamp Cylinder Built-in Standard Magnet

(No reviews yet) Write a Review
SKU:
CKQGDA50-250DBLZ
MPN:
CKQGDA50-250DBLZ
Condition:
New
With Lock On The Clamp Side:
Without Lock
Model:
Built-in Standard Magnet Type
Body Shape:
D Series
Mounting Surface (Viewed From Top):
Parallel Side To Port
Bore Size:
Bore Size 50 mm
Thread Type:
Rc
Guide Pin Diameter:
25.0 mm
Guide Pin Shape:
Diamond Type
Clamp Arm Position (Clockwise Viewed From Top):
90 Deg From The Port Side
Clamping Height:
Body Shape D:LOW Type(60 mm)
Shim:
Without Shims
Auto Switch:
Without Auto Switch (Built-In Magnet)
Number Of Auto Switches:
2 pcs. Or None
$548.75

Description

C(L)KQG Series Pin Clamp Cylinder Built-in Standard Magnet

  • The compact magnetic field resistant auto switch (D-P3DWA) added. [New];
  • Possible to mount on 4 surfaces, and 2 auto switches on the same surface. ; Improved flexibility of system design. Protrusion of auto switch shortened by 5 mm.; Can be mounted directly.;
  • Adjustable height for clamping a workpiece.;
  • 55 types of guide pins.
