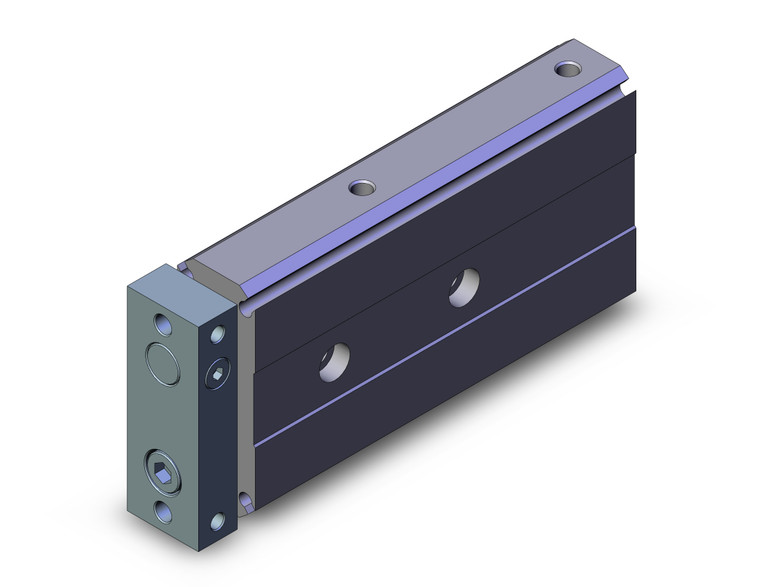

SMC CXSJL20-50-M9BM CXSJ Series Dual Rod Cylinder Compact Type
SMC
$270.45
The SMC CXSJL20-50-M9BM CXSJ Series Dual Rod Cylinder Compact Type is engineered for efficiency and versatility. This model boasts a more compact body than the traditional CXS dual rod cylinder series, making it ideal for applications where space is at a premium. The innovative design allows for auto switch confirmation from four different directions, enhancing usability and convenience. Additionally, axial piping options are available, providing flexibility in installation and operation. With bore sizes of 6 and 10, this dual rod cylinder is perfect for a variety of industrial applications, offering reliable performance in a streamlined package.
- Bearing Type:
- Ball Bushing Bearing
- Bore Size:
- Bore Size 20 mm
- Port Thread Type:
- M Thread( 6 25),Rc1/8( 32)
- Piping:
- Standard 6 32
- Cylinder Stroke:
- Standard Stroke 50 mm
- Auto Switch:
- Solid State Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :1m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
