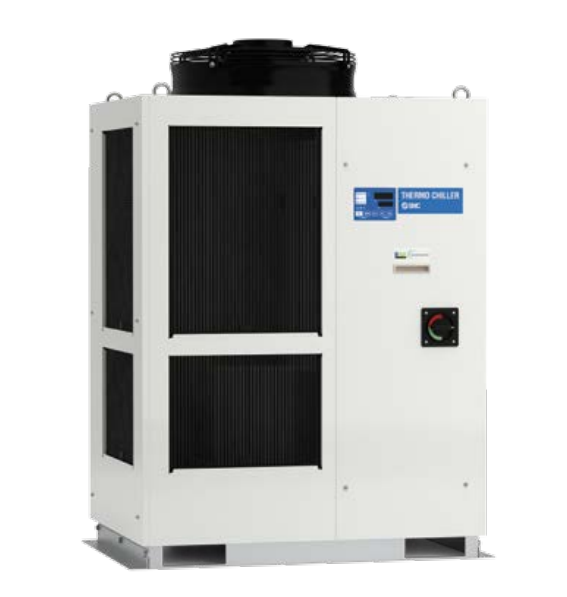

SMC HRSHF150-AN-20 Low GWP Refrigerated Thermo-Chiller | 15 kW Air-Cooled R32 Inverter Type for Industrial Process Cooling
SMC
$27,273.20
The SMC HRSHF150-AN-20 is a 15 kW air-cooled refrigerated thermo-chiller featuring low GWP R32 refrigerant (GWP: 675), fully compliant with EU F-gas regulations and US AIM Act standards. This large-capacity inverter type delivers ±0.1°C PID-controlled temperature stability with triple inverter technology that independently controls compressor, fan, and pump speeds for up to 53% energy savings. 3-phase 200 to 230 VAC power supply. Heating function uses discharged heat, eliminating the need for a separate heater. RS-232C/RS-485 serial communication and contact I/O standard for PLC integration. Low-noise design at 70 dB(A). Outdoor installation capable (IPX4). Lockable casters for indoor mobility. Suited for laser machine tools, analytical equipment, mold temperature control, semiconductor support, and high-demand industrial process cooling applications.
- Series:
- HRSHF
- Model:
- HRSHF150-AN-20
- Cooling Method:
- Air-Cooled Refrigeration
- Cooling Capacity:
- 15 kW
- Refrigerant:
- R32 (HFC)
- GWP:
- 675
- Control Method:
- PID
- Temperature Stability:
- ±0.1°C
- Set Temperature Range:
- 5 to 40°C
- Circulating Fluid:
- Tap Water or 15% Ethylene Glycol
- Circulating Fluid Port Size:
- Rc1
- Power Supply:
- 3-Phase 200 to 230 VAC (50/60 Hz)
- Ambient Temperature Range:
- 5 to 40°C
- Humidity Range:
- 30 to 70%
- Communication:
- RS-232C/RS-485
- Contact I/O:
- 2 Inputs, 3 Outputs
- Inverter:
- Triple (Compressor, Fan, Pump)
- Noise Level:
- 70 dB(A)
- Outdoor Rating:
- IPX4
- Pipe Thread:
- NPT
- Heating Function:
- Yes (Discharged Heat)
- Standards:
- UL, CE, RoHS
- Country of Origin:
- Japan
