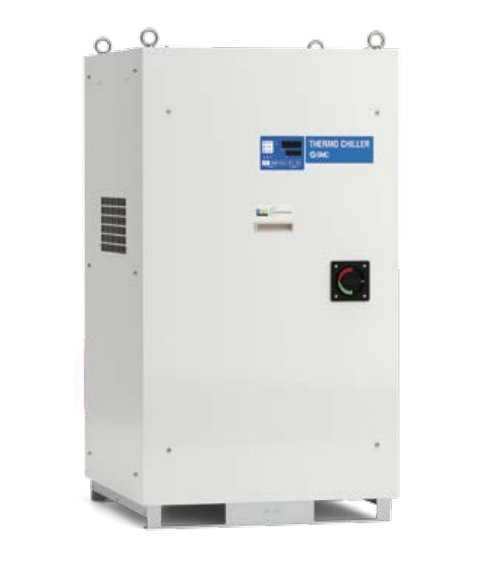

SMC HRSHF250-WN-40-AK Low GWP Refrigerated Thermo-Chiller | 25 kW Water-Cooled R32 Inverter with Auto Water Supply Kit
SMC
$27,575.00
The SMC HRSHF250-WN-40-AK is a 25 kW water-cooled refrigerated thermo-chiller with low GWP R32 refrigerant (GWP: 675) and integrated automatic water supply with kit. Water-cooled refrigeration significantly reduces heat exhaust into the facility, ideal for temperature-sensitive production areas. Auto water supply with solenoid valve replenishes circulating fluid automatically. Triple inverter technology for energy efficiency. ±0.1°C PID-controlled temperature stability. 3-phase 380480 VAC. RS-232C/RS-485 serial communication standard. Suited for semiconductor manufacturing support, large-scale laser cooling, and demanding industrial environments where reduced facility heat and unattended fluid management are critical.
- Series:
- HRSHF
- Model:
- HRSHF250-WN-40-AK
- Cooling Method:
- Water-Cooled Refrigeration
- Cooling Capacity:
- 25 kW
- Refrigerant:
- R32 (HFC)
- GWP:
- 675
- Control Method:
- PID
- Temperature Stability:
- ±0.1°C
- Set Temperature Range:
- 5 to 40°C
- Circulating Fluid:
- Tap Water or 15% Ethylene Glycol
- Circulating Fluid Port Size:
- Rc1
- Facility Water Port Size:
- Rc3/4
- Power Supply:
- 3-Phase 380 to 480 VAC (50/60 Hz)
- Ambient Temperature Range:
- 5 to 40°C
- Communication:
- RS-232C/RS-485
- Contact I/O:
- 2 Inputs, 3 Outputs
- Inverter:
- Triple (Compressor, Fan, Pump)
- Auto Water Supply:
- Included with Kit (Option AK)
- Pipe Thread:
- NPT
- Heating Function:
- Yes (Discharged Heat)
- Standards:
- UL, CE, RoHS
- Country of Origin:
- Japan
- Catalog:
- View
