SMC LEPY10J-75U-RCCD18S Miniature Rod Type

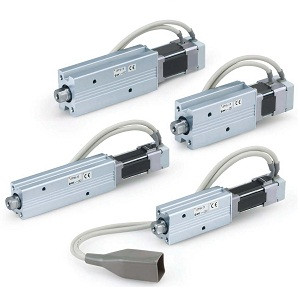

SMC LEPY10J-75U-RCCD18S LEPY Series Electric Actuator Miniature Rod Type Step Motor (Servo 24 VDC) Applicable To The JXC series

SMC
SKU:
LEPY10J-75U-RCCD18S
Availability:
Factory stock
$1,459.00
Condition:
New
Current Stock:
Description

LEPY Series Electric Actuator Miniature Rod Type Step Motor (Servo 24 VDC) Applicable To The JXC series

  • Compact and lightweight; W 20.5 mm x H 30 mm x L 125.6 mm, weight 240 g;
  • Max. pushing force: 50 N;
  • Positioning repeatability: ±0.05 mm;
  • Possible to set position, speed and force (64 points);
  • Max. speed (Horizontal): 350 mm/s;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECP1, LECPA, LECP6(Manufacture Discontinued), LECPMJ(Manufacture Discontinued)
    • Additional Information
    Size:
    10
    Motor size:
    Basic Style
    Lead Screw Type:
    LEPY6:8mm,LEPY10:10mm
    Stroke:
    Stroke 75 mm
    Motor Cable Entry:
    Bottom Entry
    Actuator Cable Type/Length:
    Robotic Cable 20 m
    Communication Protocol:
    DeviceNet
    Number Of Axes/Special Specification:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    DIN Rail Mounting
    Communication Plug Connector I/O Cable:
    Straight Type
